The pulse frequency doubler composed of gate circuits (CD4011)

Published:2011/6/17 6:33:00 Author:Borg | Keyword: pulse frequency doubler, gate circuits | From:SeekIC

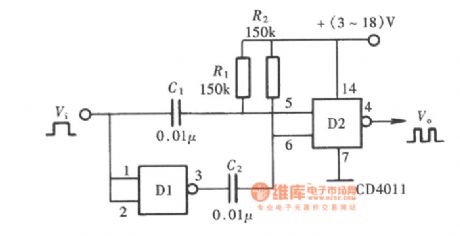

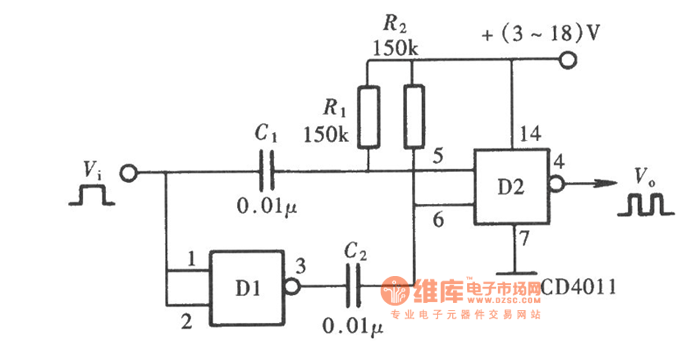

The pulse frequency doubler consists of two gates of the NAND CD4011, and one of the gates forms the phase inverter. By inputting the falling edge inverting phase of the pulse, the circuit will output a pulse with the help of the rising edge and the falling edge of the pulse, so that the aim of double frequency is fulfilled. The circuit construction is as follows.
