The pulse double frequency circuit composed of CD4013

Published:2011/6/16 5:23:00 Author:Borg | Keyword: pulse, double frequency | From:SeekIC

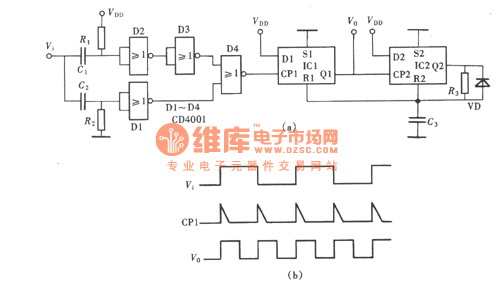

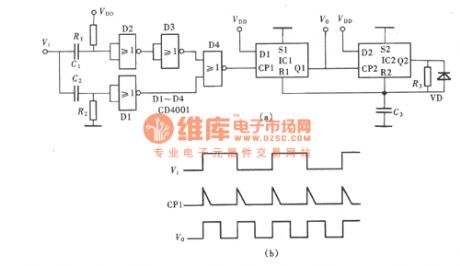

With a CD4013 and a 4-1-2 input terminal NOR gate CD4001, we can make a pulse doublefrequency circuit, whose circuit is shown in the figure.
