The pulse demodulator composed of gate circuit

Published:2011/9/9 18:23:00 Author:Ariel Wang | Keyword: pulse demodulator , gate circuit | From:SeekIC

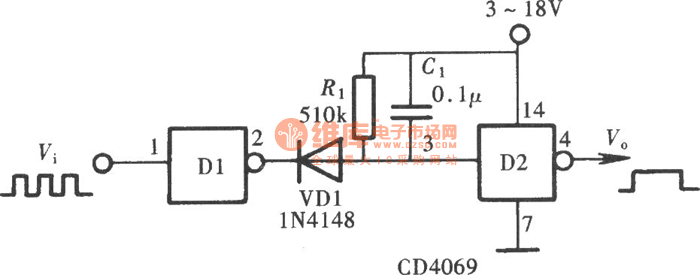

The pulse demodulator composed of CMOS six intervers CD4069 is seen as the chart.It is used to envelope detect for the plulse demodulator.
