The outline circuits of some digital boards

Published:2011/6/10 0:56:00 Author:qqtang | Keyword: outline circuit, digital board | From:SeekIC

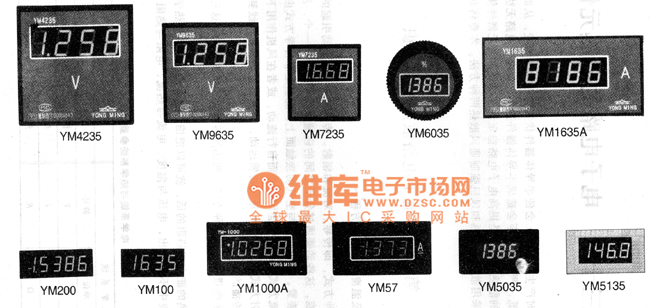

The digital board consists of special integrated circuits, highly stable reference power supply and digital display components. The digital board characterizes high precision, strong antijamming capability, good reliability, wide working temperature and convenient installation, which is a replacement of the pointer type. The digital board can be directly used in all kinds of electricity parameter tests, such as working with sensors, and it can also be used in non-electricity parameter tests, such as military strength, temperature and movement,etc. Figure: The outlines of some digital boards
