The muscle stretch tester circuit

Published:2011/8/23 22:14:00 Author:Borg | Keyword: muscle stretch tester | From:SeekIC

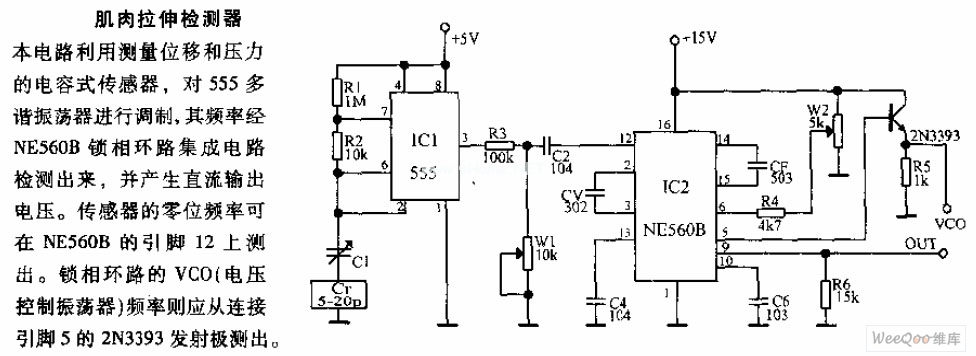

The circuit modulates 555 multi-resonance by using the capacitance sensor that measures movement and pressure, the frequency is tested out by the NE560B PLL integrated circuit, and it generates the DC output voltage. The sensor zero frequency can be tested out by the 12-pin of NE560B. The VCO (voltage control oscillator) frequency of the PLL circuit should be tested out from the 2N3393 emitter which connects with 5-pin.
