The instrument, indicator and alarm lamp of Daewoo Racer

Published:2011/5/21 3:09:00 Author:Borg | Keyword: instrument, alarm lamp, Daewoo Racer | From:SeekIC

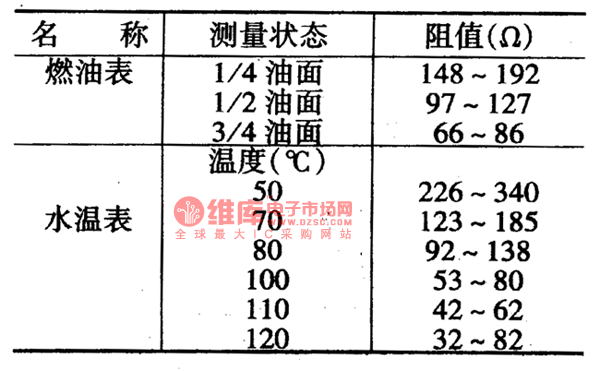

The H7 signal of engine rotating speed comes from the junior negative point of the igniting coil(connecting to igniting module); both the oil meter(H9) sensor and oil alarm switch are fixed in the oil tank, when the oil drops the minimum, the alarm lamp (E45) is on, but the car can run another 50KM. The water temperature meter(H8) and oil tank (H) share a stabilizer whose output voltage is 10V. The sensor parameters of these two meters are seen in Figure 6. One terminal of the electrooptical indicator(E36) connects to F13(No.15 wire), and the other connects with the juncture of the generator diode and the field coil.
