The infrared lamp controller circuit

Published:2011/6/10 3:19:00 Author:qqtang | Keyword: infrared lamp controller | From:SeekIC

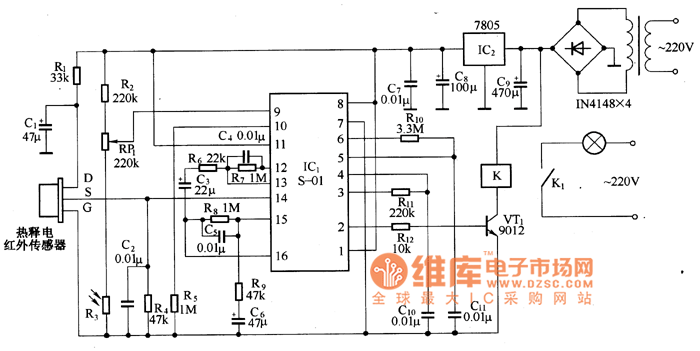

The infrared lamp controller is equipped with a heat releasing infrared sensor as the human body sensor, which can make the lamp controller fulfill functions of lighting with human being coming, cutting off when the people is away , it is especially suitable for hotels, departments, corridors of residential areas and homes.The circuit of the controller is in the figure, which mainly consists of the heat releasing infrared sensors, the infrared process integrated circuit S-01,the control circuit and the power, etc. The integrated circuit IC1 includes the amplifier, comparator, state controller and time delay unit,etc.
