The igniting distributor circuit of Santana 2000GLi

Published:2011/5/16 7:12:00 Author:Borg | Keyword: igniting distributor, Santana | From:SeekIC

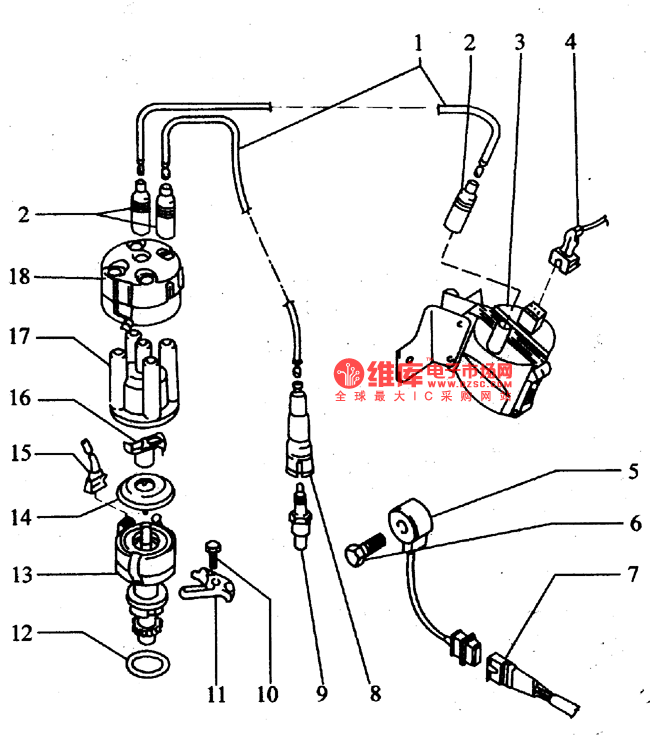

Figure 1 The igniting distributor circuit of Santana 2000GLi1-high voltage wire; 2-anti-noise plug(0·9-lkΩ); 3-igniting coil; 4-igniting coil connector; 5-explosive sensor(C6l is on the cylinder of engine); 6-screw; 7-explosive sensor plug; 8-spark plug(4.5-5.5kΩ); 9-spark piston; 10-screw of electricity distributor board(25Nm); 11-electricity distributor board; 12-O-shape coil; 13-igniting electricity with Hall sensor(g40); 14-shield; 15-Hall sensor plug; 16-distributor rotor(model No.Rl，1.lkΩ); 17-electricity distributor; 18-shielding case
