The igniting circuit of Daewoo

Published:2011/5/21 3:50:00 Author:Borg | Keyword: igniting circuit | From:SeekIC

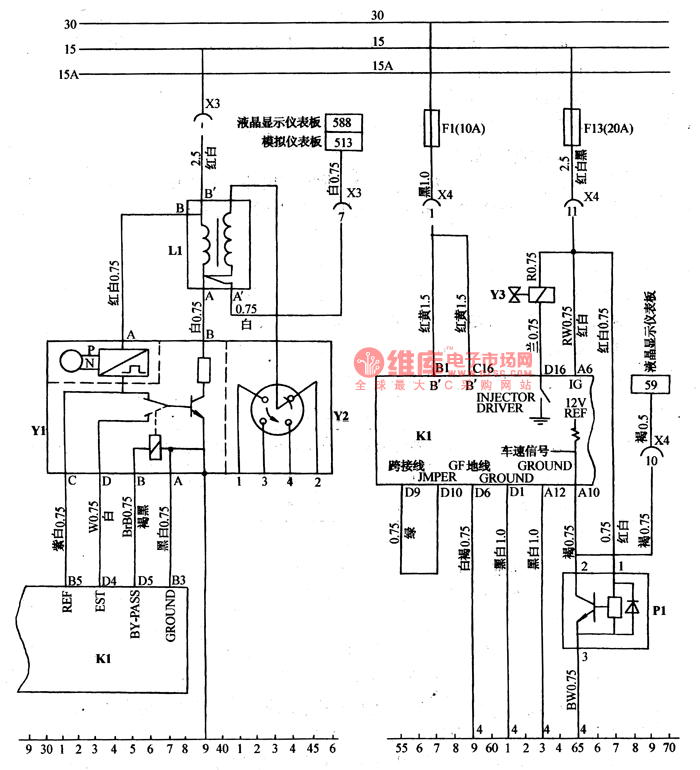

The igniting signal generator, igniting module Y1 and high voltage distributor compose into an integration. The resistance of the signal coil is 500~1500Ω, and the insulating resistance is infinitely large, the elementary - terminal connects with rotating speed meter.The elementary resistance ranges 0.25~0.45Ω, the secondary is 7.5~9.5KΩ, insulating resistance is infinite. The igniting sequence is 1-3-4-2, the points of testing electricity distributor is shown as Figure 2.
