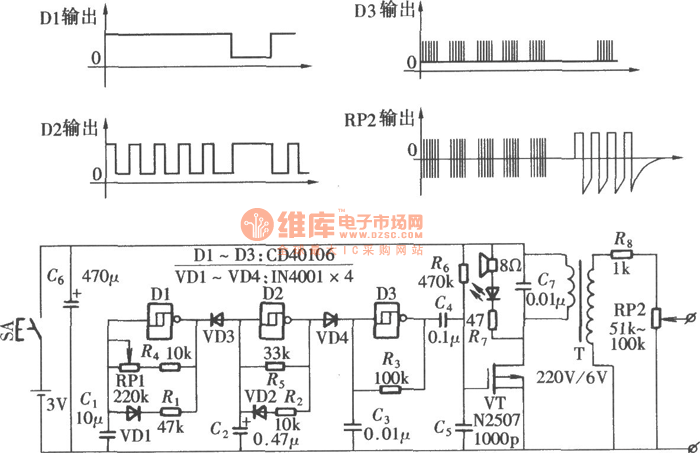

There are many different types of electronic treatment in the medical device market.They are said that they have a special effect to certain diseases.The price is also not cheap. In fact, most of them are nothing more than some electronic treatment devices which can output some pulses .They may have the effect to some diseases in accordance with different frequencies of the output pulse waveform.It is the home points electrotherapy shown as the chart. The whole circuit is mainly composed of a Schmitt trigger CD40106 six.The ultra-low-frequency multivibrator oscillation consists of the Dl, Rl, VDl and C1. The oscillation frequency is 0.5 ~ 5Hz. It is regulated by RPl.
