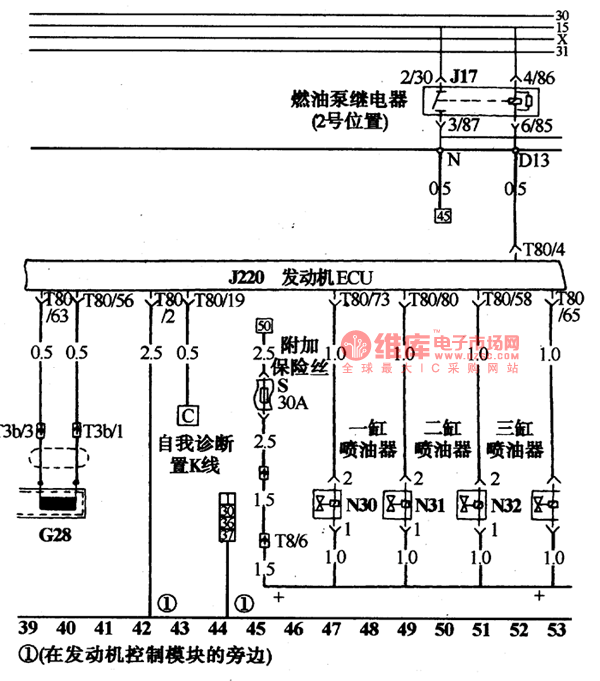

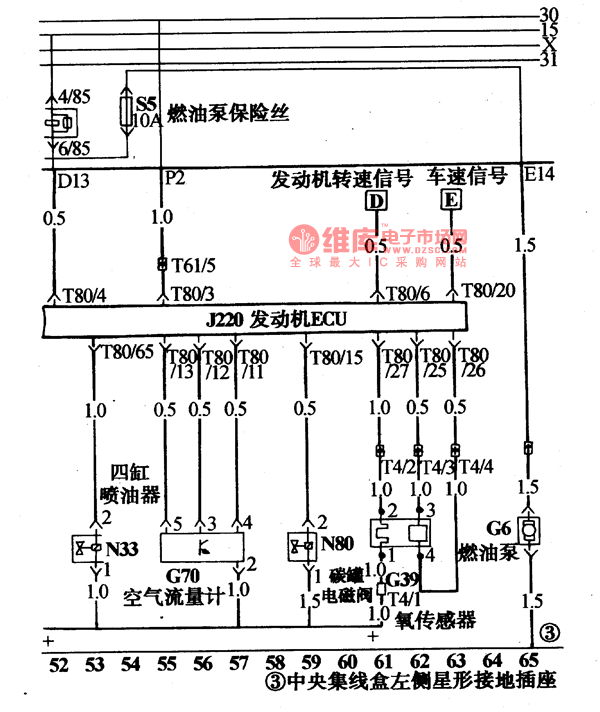

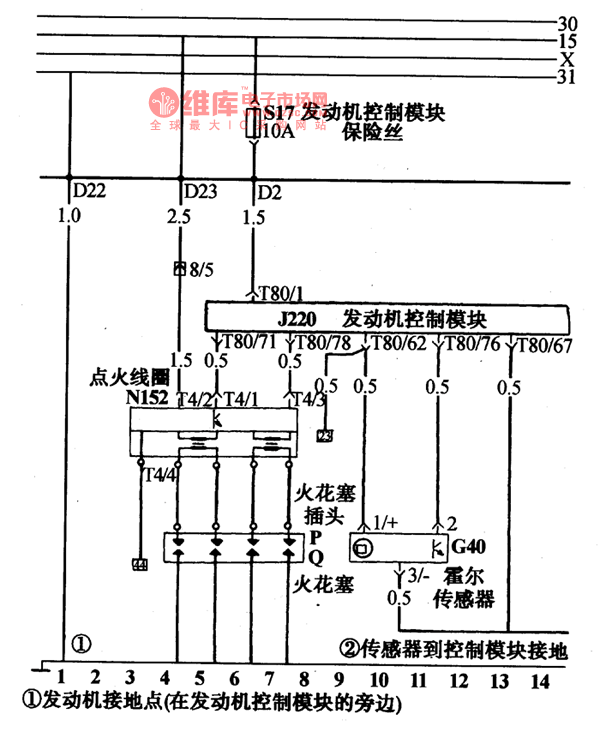

The fault detection circuit of Santana AJR engine

Published:2011/6/10 3:22:00 Author:Borg | Keyword: fault detection circuit, Santana | From:SeekIC

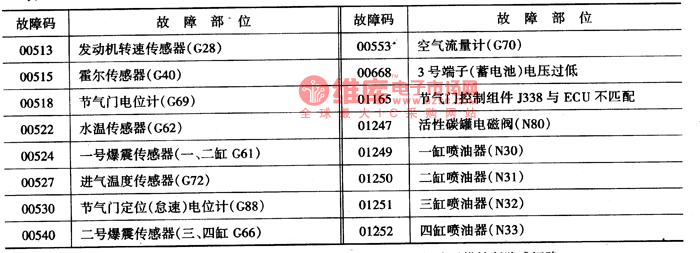

The computer J220 of the AJR engine can save the fault of sensors and executing components, and the fault codes have to be read out by VAG1552 or VAG1551 fault detectors or other multiple code readers which are produced by Volkswagon AG. 　　 The figure and instructions of VAG1551 fault detector have been narrated in the power jet circuit of Santana 20OOGLi. VAG1552 is up-grated on the basis of VAG1551, and the size is smaller, functions are more complete, the figure of it is like a laptop.
