The electronic voltmeter of LED display

Published:2011/9/2 3:00:00 Author:Ariel Wang | Keyword: electronic , LED display | From:SeekIC

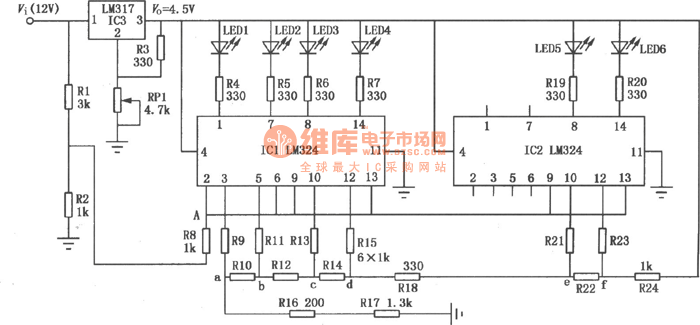

The circuit consists of 6 LEDs,two integrated circuits and some resistors.It could display the storage battery's voltage value of the motors,cars and electric bicycles .It is very convenient to use.
