The draft fan circuit (2)

Published:2011/8/23 22:38:00 Author:qqtang | Keyword: draft fan | From:SeekIC

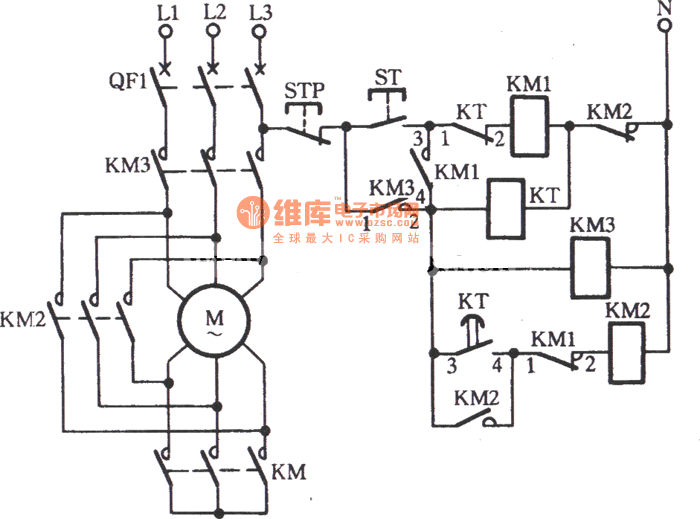

The circuit makes sure that there is enough time when Y-△ decompression is started, i.e in the KM2 coil control circuit, the 2 couples of serial contactors make sure there is enough time when Y-△ decompression is started.
