The detection circuit on running engine of Santana 20OOGLi

Published:2011/5/16 4:14:00 Author:Borg | Keyword: detection circuit, Santana | From:SeekIC

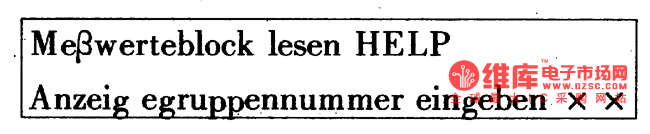

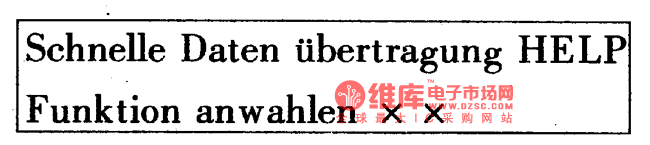

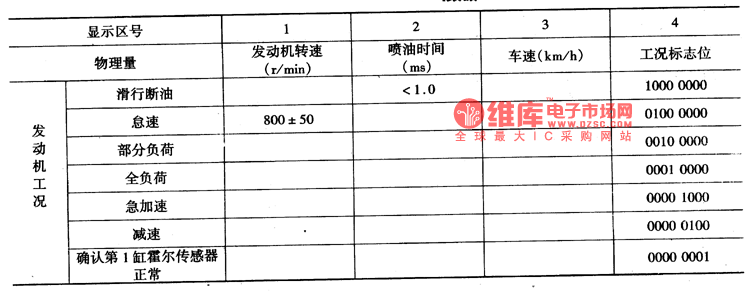

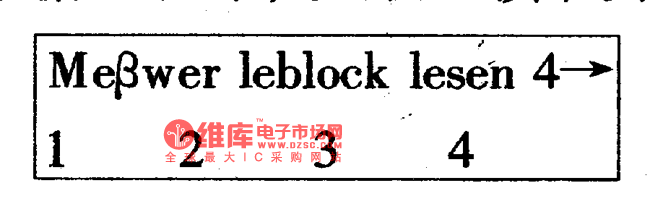

(1)Input the function code of 0l at idling speed after connecting V.A.Gl551 fault detecter, then choose engine electric sprayer control detection gear , the words fast-speed data delivering, assisting function selection xx will come out on the screen, i.e (2)Input function code of 08(read testing data), press Q key to confirm, then the words read the testing data, assisting to input the team No. , i.e Since this is to judge if the engine computer can tell the different conditions, so input the code of 04 and press the key of Q to confirm, then the data on team 04 will be shown on the screen.
