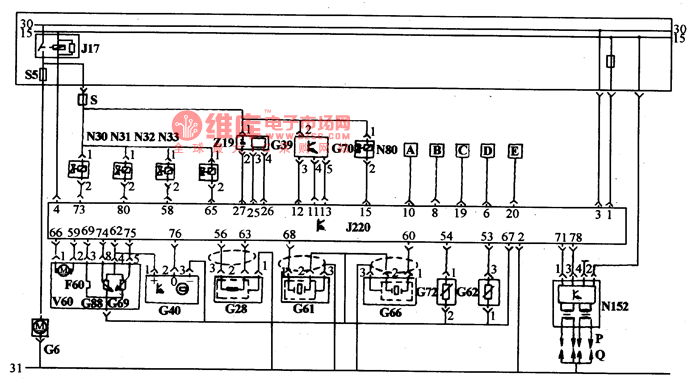

The control circuit of Santana AJR(ZVQS) power jet engine

Published:2011/5/14 10:32:00 Author:Borg | Keyword: control circuit, Santana, power jet engine | From:SeekIC

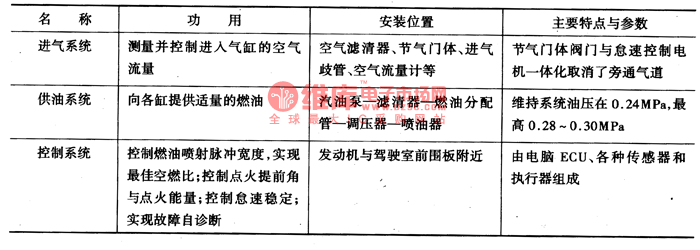

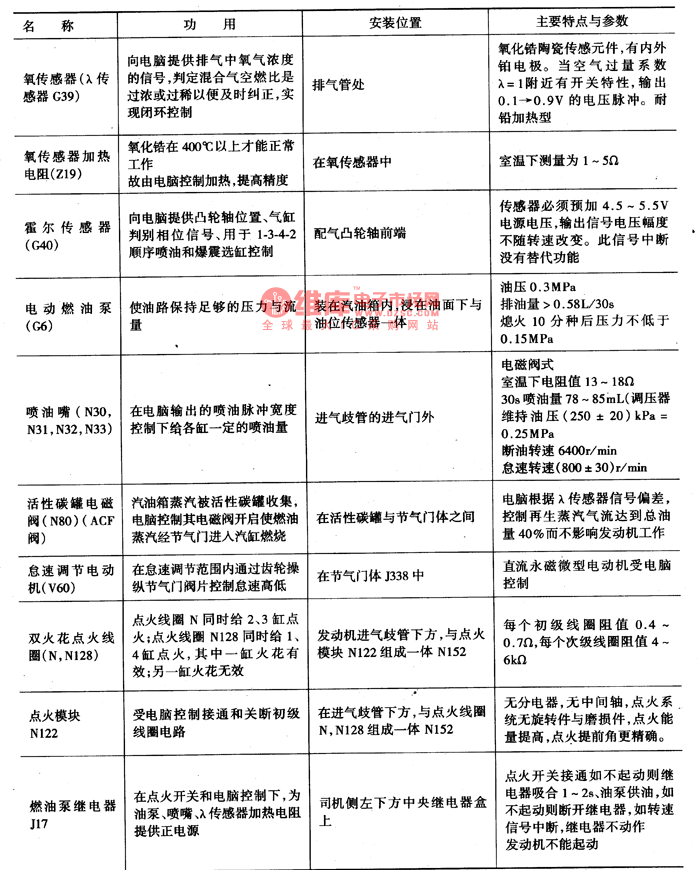

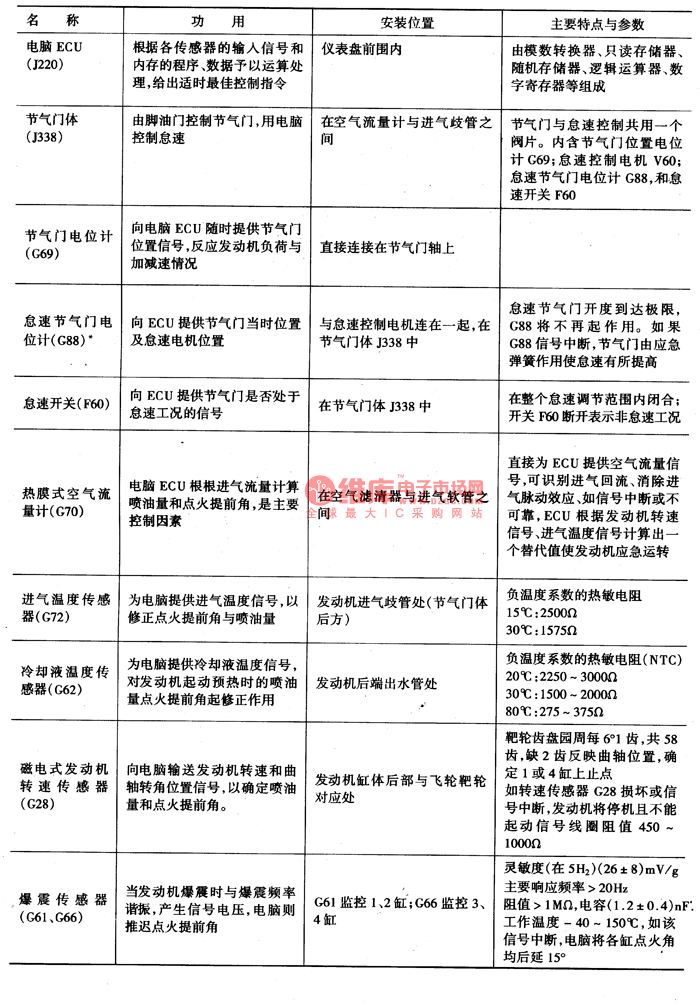

AJR engine is simplified engine without intermediate shafts or electricity distributors, whose igniting order comes from the engine computer(ECU), and ECU delivers the order after getting the signals coming from the engine speed sensor(G28) and camshaft position (Hall) sensor(G40).the construction features of M3.8.2 control systemThe composition, functions, position and features of M3.8.2 power-controlled multiple petrol jet system that is fixed in AJR engine are as shown in Figure 1.Figure 1. The power-controlled petrol jet system of AJR engine
