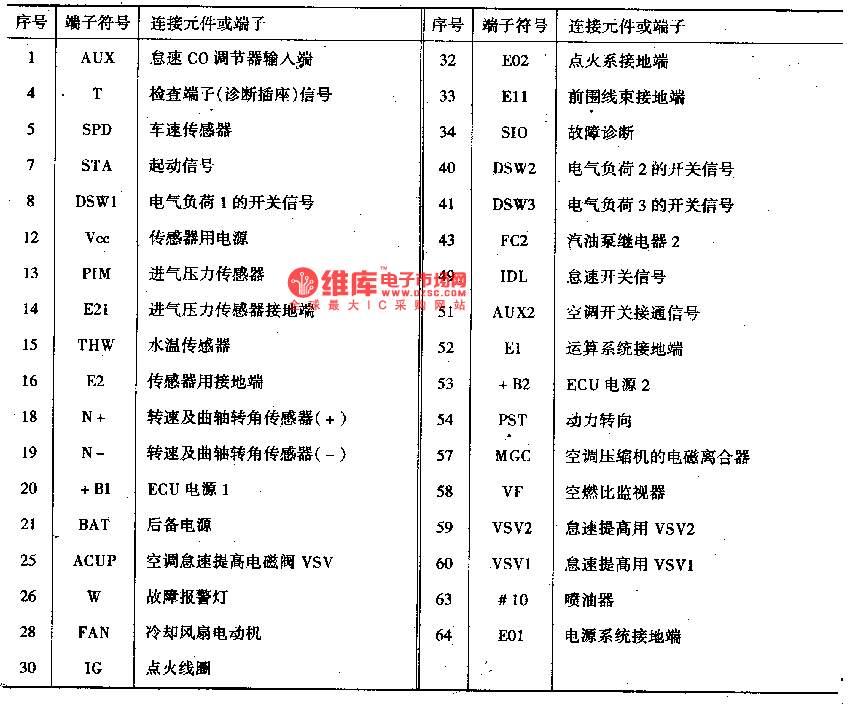

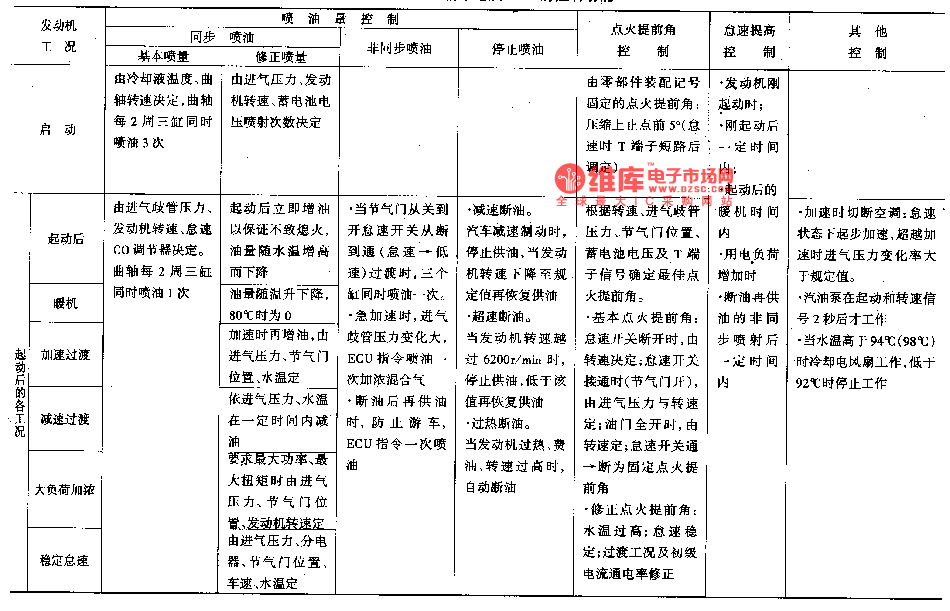

The computer ECU outlet sequence table of Xiali EFI TJ37100E

Published:2011/5/20 10:25:00 Author:Borg | Keyword: ECU, outlet sequence, Xiali | From:SeekIC

The internal functions of computer ECU is listed here. Of the input signals, the engine rotating speed and car speed signals are impulse, and they will be put into timers after passing the shaping circuit; all idling speed signals and equipment load signals and stating signals are generated by their own sensors(or their own switches). And all the admission MAP, water temperature signals and idling speed CO regulator signals are analog impulse. The executing parts mainly consist of igniting coil, oil injector, idling speed raising valve and fuel pump relay, and so on.
