The cigarette lighter and room lamp circuit of Daewoo Racer

Published:2011/5/21 21:30:00 Author:Borg | Keyword: cigarette lighter, room lamp, Daewoo Racer | From:SeekIC

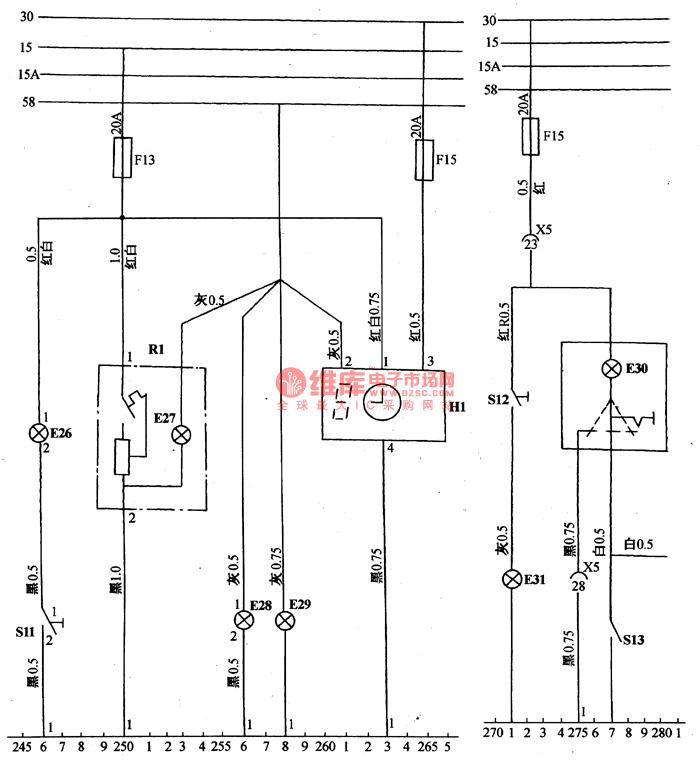

(6)cigarette lighter, clock, room lamp and seat belt(see as Figure 8)Under the fuse F13(20a), there are glove box lamp(E26), cigarette lighter(R1) and clock(H1), cigarette lighter lamp(E27) and ashtray light(E28). The engine chamber lamp(E29) still connects with the No.58 circuit and it is under the control of the light switch(S4).The room lamp(E30) and trunk lamp(E31) connect with the fuse of F15(20A)(see as Figure 9), and they are under the control of their own switch(hand or mechanic control, such as the door control switchs of S13 and S14). We can see in Figure 8 that when the igniting switch is on, and the seatbelt is not fixed, the switch of S1 will be on.
