The audio noise generator

Published:2011/6/16 0:18:00 Author:Borg | Keyword: audio noise generator | From:SeekIC

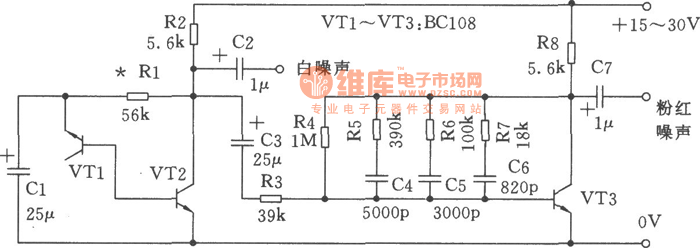

In the figure is a simple circuit which can generate white and pink noises. The voltage steady pipe is the crystal triode VTI, which generates wide-band noises in the Zener breakdown state. After being amplified by VT2, a white noise of 150mV or so is output by capacitor C2. To convert the white noise into pink noise, we use a filter net, each frequency doubler of this filter provides a 3dB reduction. As the filter reduces much of the noise, so we need an amplifier to recover the output LEV.
