The air-conditioning control circuit of Xiali TJ7100.7100U

Published:2011/5/20 10:07:00 Author:Borg | Keyword: air-conditioning, control circuit, Xiali | From:SeekIC

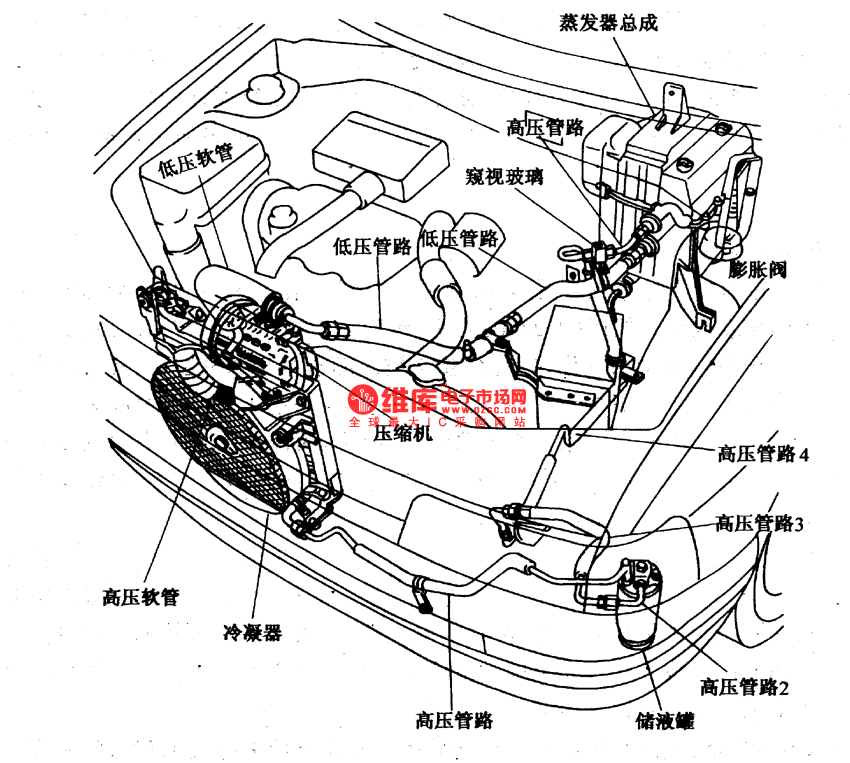

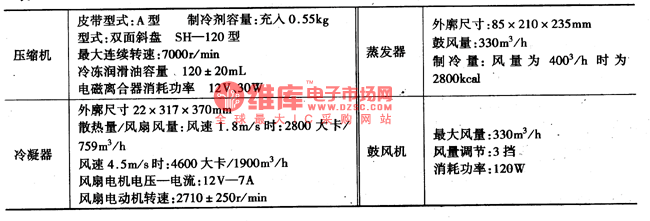

The cooling tube system of Xiali is seen in Figure 1, in the room, the cooling evaporator absorbs heat so that the refrigerant RI2 evaporates, the evaporant is in the condition of low-pressure(about 0.2 MPa) and low-temperature(about O℃) now. When RI2 converts from liquid in to gas, it has absorbed a lot of heat of vaporization, then the steamed RI2 flows into the cylinder, and it is turned into liquid again after pass the piston, but the temperature and pressure raises a lot(temperature is about 60-70℃ , pressure is between 1·0-1·5Mpa), and it is strained from the compressor to the condenser.
