The air-conditioning circuit of Nanjing Iveco light car

Published:2011/7/15 19:14:00 Author:Borg | Keyword: air-conditioning circuit, light car | From:SeekIC

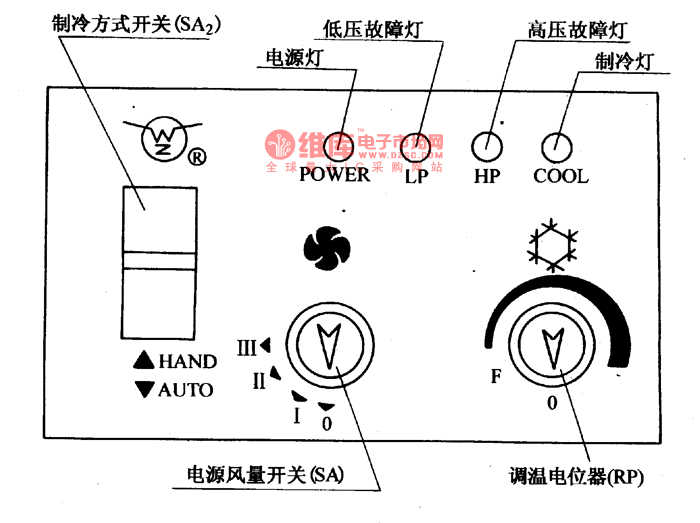

(18) The air-conditioning circuit of Nanjing Iveco light carThe air-conditioning system of Nanjing Iveco light car is in a non-independent structure, which is driven by the engine crankshaft belt with the help of compressor and electromagnetic clutch, and whether electromagnetic clutch is separated or connected is decided by the temperature control switch(manual or auto or their combination), the cooling part consists of the compressor, condenser, liquid storing tank, swelling valve, evaporator, electric control system and tube, etc. The coolant is R-12 (freon), and it refrigerates in the vapor compressing method.
