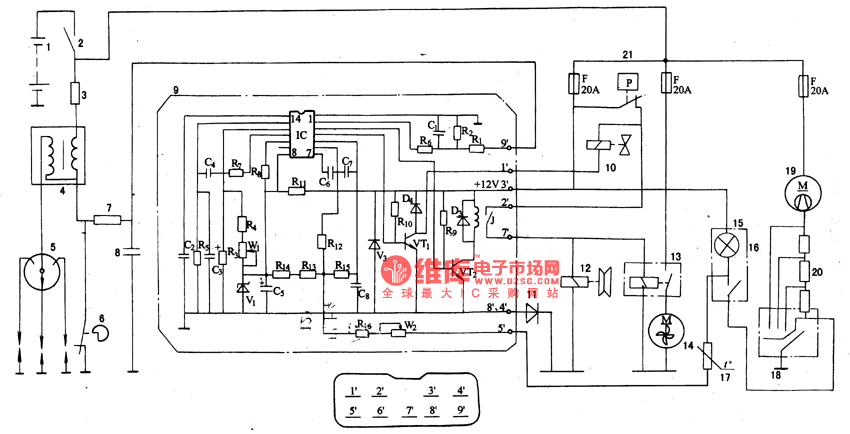

The air-conditioner control circuit of Xiali TJ7100.7100U

Published:2011/6/14 20:30:00 Author:Borg | Keyword: air-conditioning, control circuit, Xiali | From:SeekIC

1-battery; 2-igniting switch; 3-additional resistance of igniting coil; 4-igniting coil; 5-electricity distributor; 6-electricity cutter; 7-rotating speed sensor(low pass filter); 8-filter capacitor; 9-air-conditioning control; 10-idling speed raising equipment; 11-diode; 12-compressor electric-magnetic clutch; 13-cooling fan relay; 14-cooling fan motor(condenser and radiator);15-air-conditioning switch; 16-air-conditioning switch; 17-thermistor; 18-air blower switch; 19-air-conditioning blower; 20-blower speed-adjusting resistance
