The coil and circuit of thepetrol supply relay 9(as shown in Figure 1 and 2) is under the control of the points ( 15 and 50) of the igniting switch (12) and the steering signals(the intersection of igniting coil 28 and igniting module 31).
When the igniting switch is at the first gear(working normally) and the second(starting), the point of the petrol supply relay is picking up, then the petrol ancillary pump(10) and petrol pump will come into work.

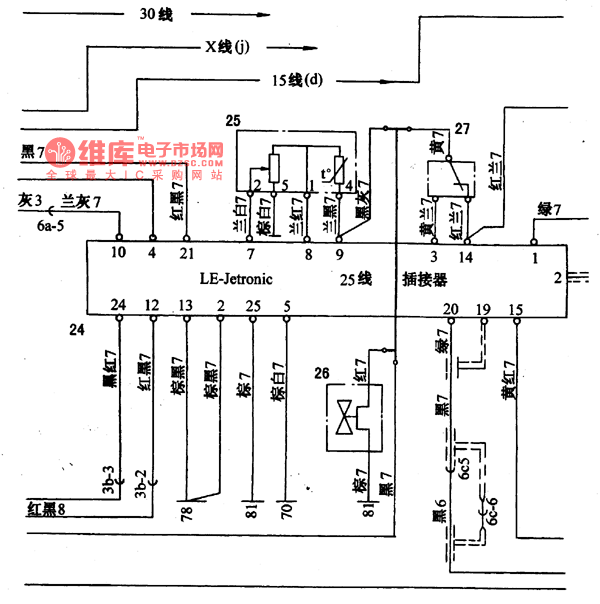

24-petrol jet control unit; 25-air flowmeter and admission temperature sensor; 26-additional air regulator; 27-throttle position sensor; 28-ignition coil; 29-electricity distractor; 30-spark plug; 31-electronic ignition control unit; 32-the signal of the ignition distractor; 32a-explosion sensor; 33-EZK ignition control unit; 34-choke valve/ignition indicator; 35-temperature sensor; 36-choke valve indicating switch
