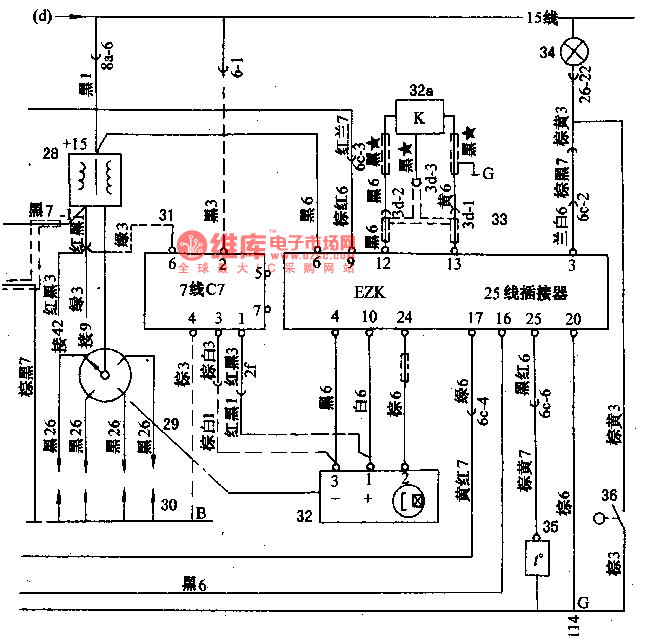

As shown in Figure 1 is that the signal voltage produced by the Hall signal generator (32) of the ignition system is sending to the igniting control unit(EZK) (33), the unit will deliver igniting signals in time according to this signal and signals of explosion sensor 32a, engine coolant temperature signals of thermometer(35) and by computing, this signal is delivered from the points (16 and 17) of EZK to points(15 and 20) of LE-Jetronic, by which the breaking time and the dwell angle controling the elementary circuit is under control, then the sub-coils generate high voltage which is delivered to each cylinder piston(30) by electricity distractors(29).
In the figure, there is also a ignition control module (31) which is connected with the Hall signal generator and igniting coils by a dotted line, this is a stand-by project. If there weren’t the petrol jet control unit(24) and igniting control unit(33), the ignition circuit would be like Santana LX, GX,etc.
