The Chang An Auto fuse and relay circuit

Published:2011/7/4 4:09:00 Author:qqtang | Keyword: Chang An, Auto, fuse, relay | From:SeekIC

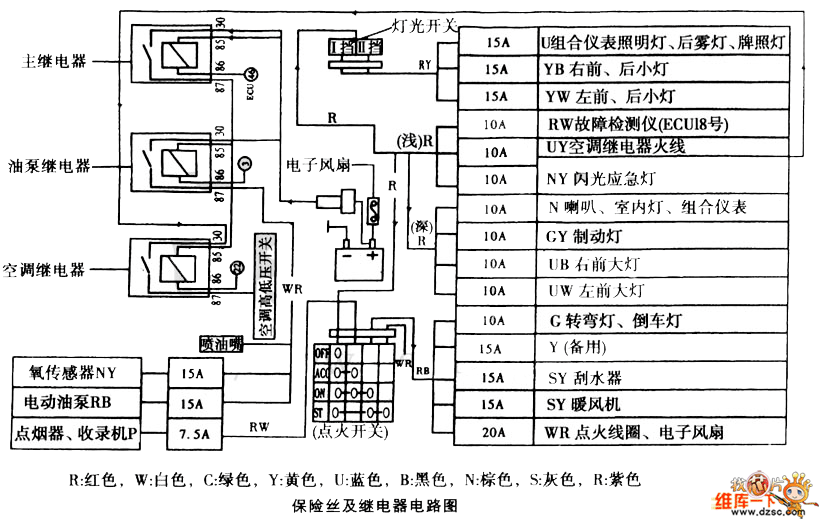

The Chang An Auto fuse and relay circuit is shown as above. R:red, W:white, C:green, Y:yellow, U:bule, B:black; N:brown, S:grey, R:purple The fuse and relay circuit
