The 60Hz time-based generator composed of MM5369

Published:2011/6/15 21:23:00 Author:Borg | Keyword: time-based generator | From:SeekIC

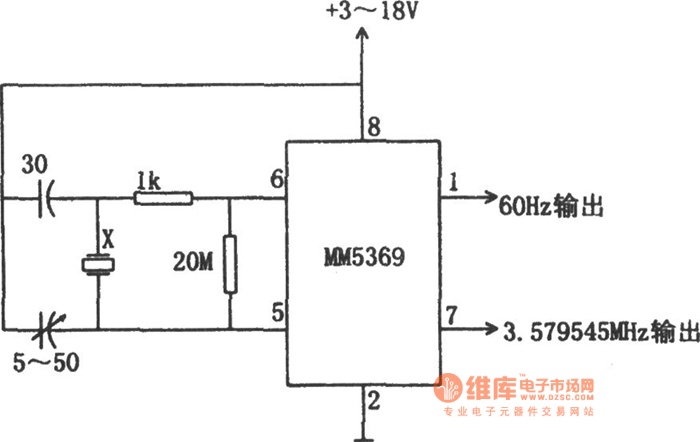

In the figure is the 60Hz time-based generator composed of MM5369. In many conditions, 60Hz has been a reference frequency, such as electric clock, timer and controller, etc, and all of their reference frequencies are 60Hz. So a independent 60Hz signal source is often in need, which is used in portable or battery power supplies for test or development. This circuit is formed by the integrated TV MM5369 time-based generator. The device needs external crystal which is cut according to the standard color synchronized signal frequency of standard 3.57954MHz.
