The 3-phase asynchronous motor connection circuit

Published:2011/8/23 22:38:00 Author:qqtang | Keyword: 3-phase, asynchronous motor | From:SeekIC

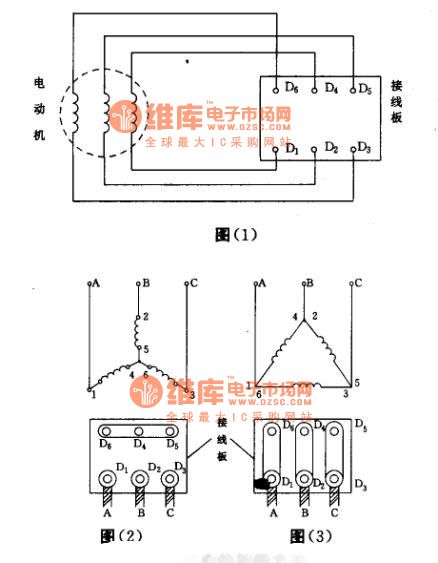

The 3-phase asynchronous motor connection circuit: each of the 3 three stator coils of the motor has 2 outgoing lines. One of them is called the head end, the other is the tail end. The head end is regulated to be represented by D1, the tail end is represented with D4; the second coil head end is represented with D2, the tail end is represented with D5; the head and tail ends of the third coil are represented with D3 and D6 respectively. The 6 outgoing lines are connected with the terminals of the box, and there are the marks of D1~D6 on the wiring terminals.
