The 1~17 system counter composed of CD4017 (1)

Published:2011/8/13 1:12:00 Author:qqtang | Keyword: 1~17 system, counter | From:SeekIC

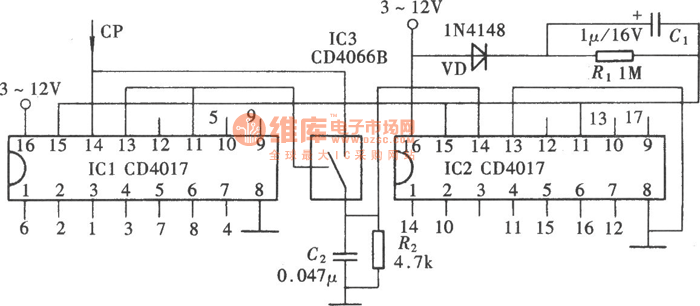

The decimal counter is used most in people's daily life, but in some situations, counters of other system are needed. Here is to introduce a 1~17 system counter composed of the decimal counting integrated circuit CD4017, whose circuit is shown in the figure.
