Terman Oscillator Circuit

Published:2011/4/22 20:42:00 Author:Sue | Keyword: Terman, Oscillator | From:SeekIC

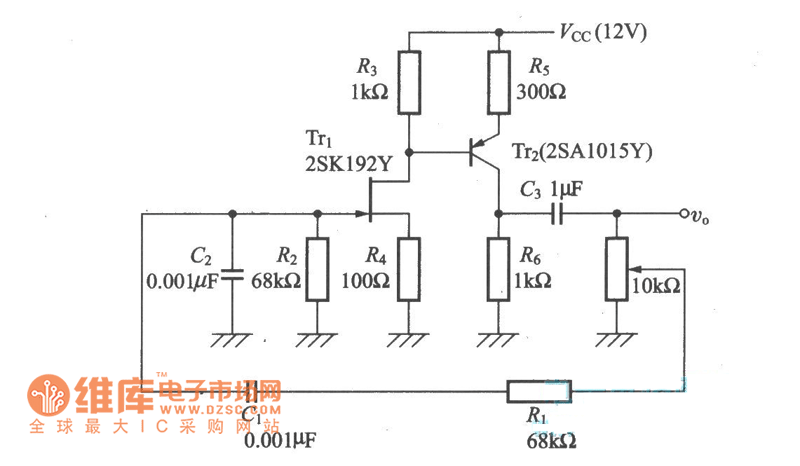

In Wien Bridge Circuit, connect J-FET between resistance R3 and R4, then replace operational amplifier with transistor. Circuit made in this way is called Terman oscillator circuit.
