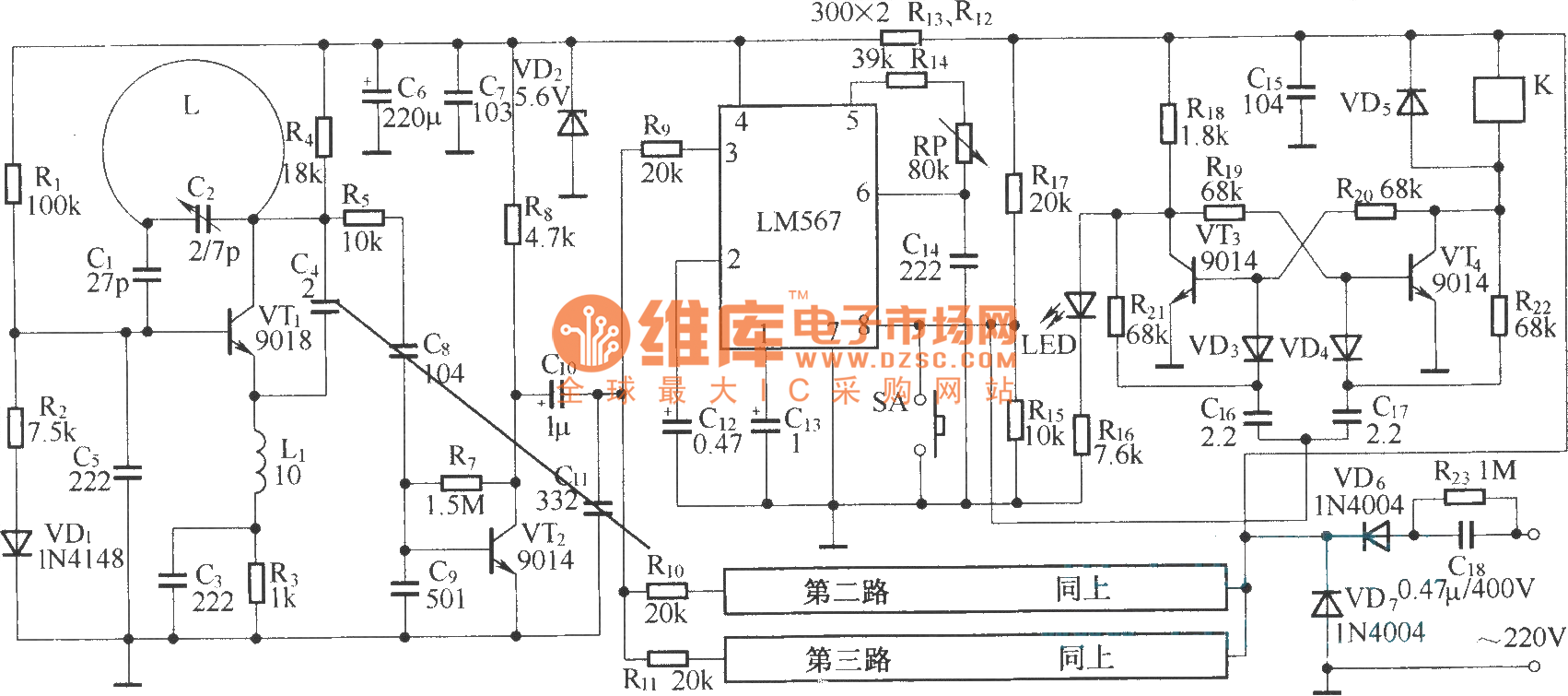

TS28 circuit diagram

Published:2011/4/20 21:55:00 Author:Rebekka | Keyword: circuit diagram | From:SeekIC

Remote working power outlet uses half-wave rectifier RC Buck. The receive part uses the regulator voltage tube regulator. Receiver circuit uses a simple super-regenerative circuit-type receiver circuit.
