TRANSISTOR_DECREASES_RESET_TIME

Published:2009/7/16 3:45:00 Author:Jessie | From:SeekIC

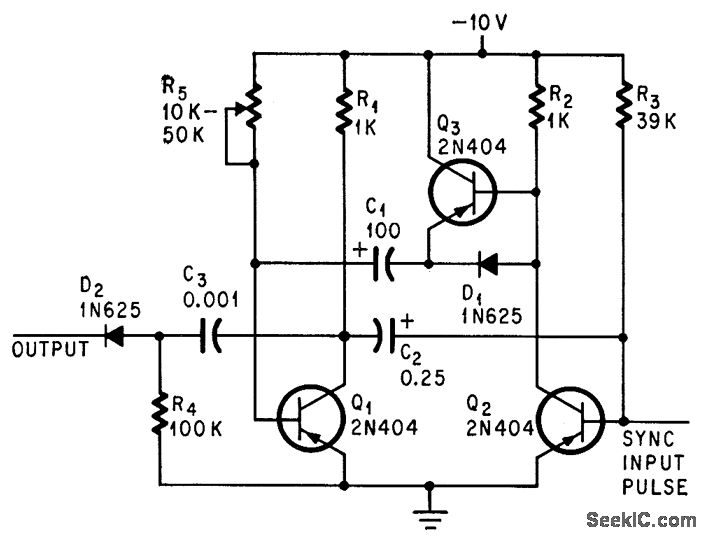

Time for recharging C1 is reduced by factor of 30 when Q3 is added to conventional astable mvbr.-S. A. Bell, Added Transistor Decreases Multivibrator Reset Time, Electronics, 37:21, p 72-73.
