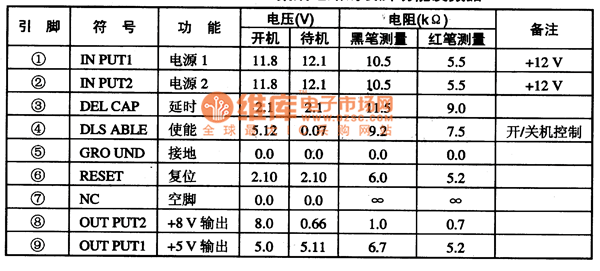

TDA8133--Dual polarity voltage regulator circuit The TDA8133 is designed as one kind of dual polarity voltage regulator circuit which is produced by the PHILIPS company, and it can be used in Konka K/N series TV. 1.Features The TDA8133 is composed of the power supply voltage regulator, standby control circuit, reset circuit, delay circuit and other circuits. 2.Pin functions and data The TDA8133 is in the 9-pin single in-line package, the pin functions and data is as shown in table 43. This data is from the Konka T2168K color TV. Table 43 The pin functions and data of the TDA8133
