TDA9321 Integrated circuit pin functions and data circuit

Published:2011/8/8 9:01:00 Author:Fiona | Keyword: pin functions and data | From:SeekIC

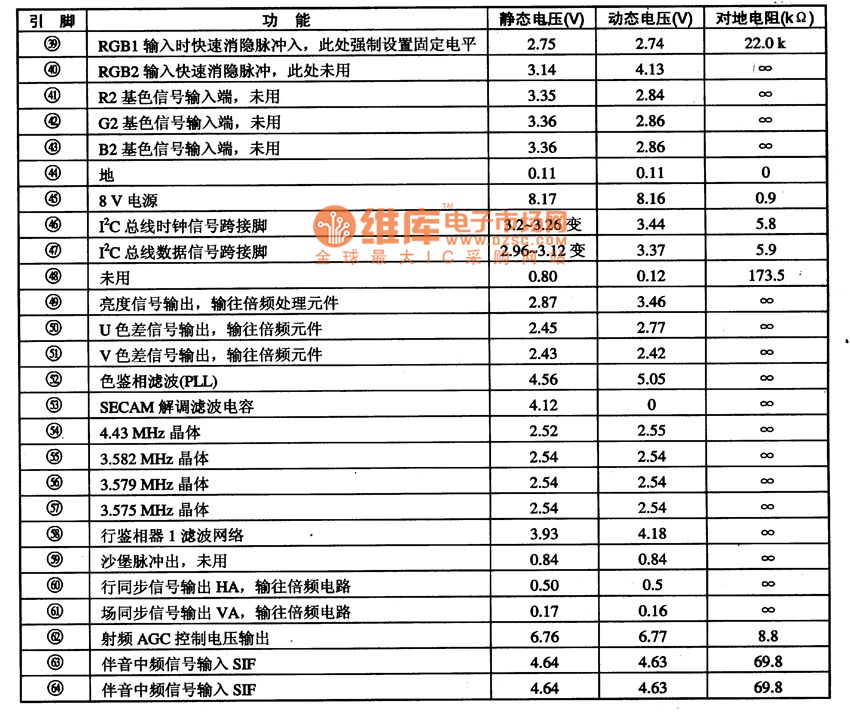

TDA9321 ——Intermediate frequency signal processing, field trip small signal processing, light-coloredhandle monolithic IC.TDA9321 is a small TV signal processing integrated circuit chip produced by PHLIPS, which is widely used in large-screen TV in the new multiplier, such as Changhong TD2000.1.FeaturesTDA9321 Integrated circuit contains image and sound IF circuit, small field scanning line signal processing circuit, luminanceand chrominance signal processing circuit, and other auxiliary functions circuit. The entire circuit completes the processing under I (2) C bus’s control.2.The whole pin functions and data TDA9321 IC uses 64-pin dual in-line package,which is applyed to Changhong color TV on the DT2000 frequency.And the integrated circuit ‘s pin functions are listed inTable 73.
