TDA9210 integrated block typical application circuit

Published:2011/4/28 0:52:00 Author:TaoXi | Keyword: integrated block, typical application | From:SeekIC

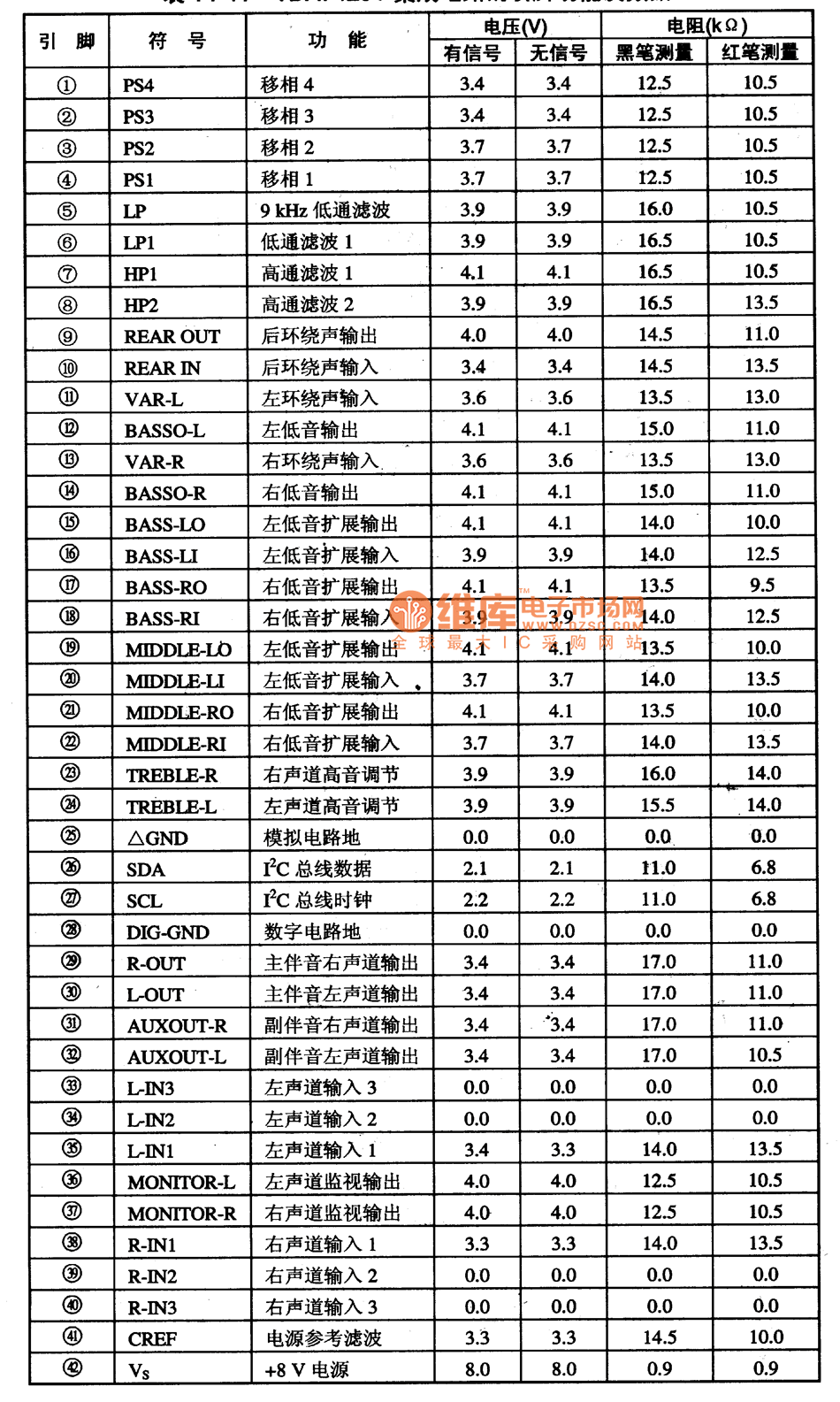

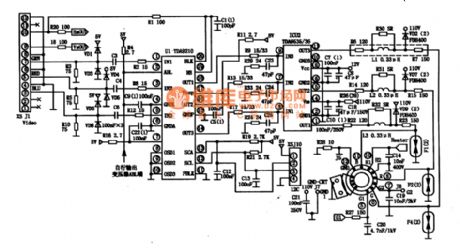

2.Pin functions and data The TDA7429T can be used in Konka T2168K TV, and the pin functions and data of this deviec is as shown in table 41. Table 41 The pin functions and data of TDA7429T 3. Typical application circuit The typical application circuit of the TDA9210 is as shown in figure 41. This circuit can be used with T-step A9535/36. The TDA9210 has no character display function in this circuit, so the pin-0 (Image-blank signal input port) has grounded. If you need to display the characters, you can input the image-blank signal from the pin-11, so ifthe characters get out, characters behind the image will be dredged .
