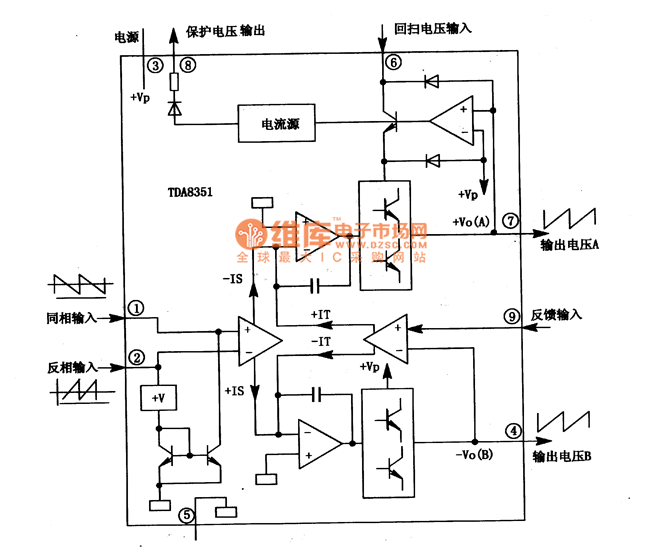

TDA8351 integrated block internal box circuit

Published:2011/4/28 8:01:00 Author:TaoXi | Keyword: integrated block, internal box circuit | From:SeekIC

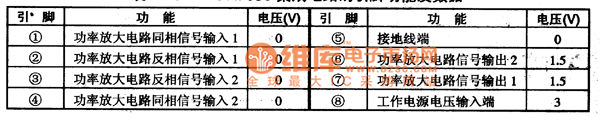

TDA7050--Two-channel power amplifier IC The TDA7050 is designed as one kind of two-channel power amplifier IC that can be used in the low voltage walkman, the repeater, the multimedia audio and other audio equipments. 1.features The TDA7050 has the two channels of audio power preamplifiers with same function, audio power amplifier and other circuits. 2.Pin functions and data The TDA7050 is in the 8-pin dual in-line package, the pin functions and data is as shown in the table 32. Table 32 5-pin functions and data of the TDA7050
