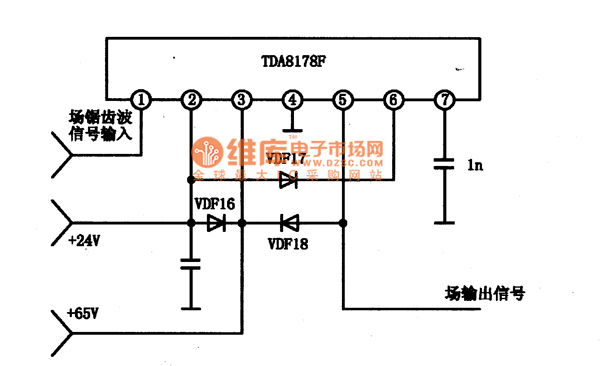

TDA8178F integrated block typical application circuit

Published:2011/4/28 8:23:00 Author:TaoXi | Keyword: integrated block, typical application circuit | From:SeekIC

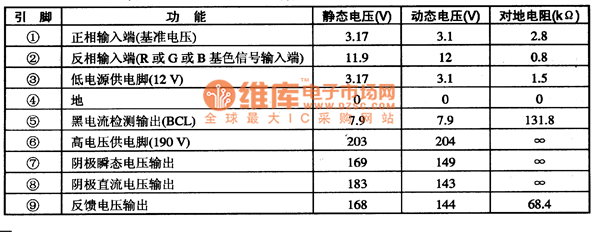

TDA611OQ--Video amplification circuit The TDA611OQ is designed as the Video amplification circuit which is produced by the PHILIPS company, and it can be used in domestic and imported color television sets' end. 1.features The TDA611OQ has the frequency amplification circuit, the high voltage power supply and low voltage power supply circuit and other kinds of circuits. 2.Pin functions and data The TDA611OQ is in the 9-pin single in-line package, and it can be used in Changhong DT000 rear projection TV, the pin functions and data of TDA611OQ is as shown in table 30. table 30 The pin functions and data of TDA611OQ
