TDA8177F integrated block internal box circuit

Published:2011/4/29 0:51:00 Author:TaoXi | Keyword: integrated block, internal box circuit | From:SeekIC

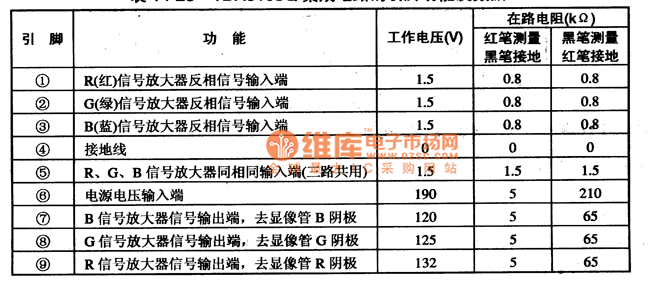

TDA6103Q--Single-chip video magnification integrated circuit The TDA6103Q is designed as one kind of Single-chip video magnification integrated circuit which is produced by the PHILIPS company, and it can be used in the large screen color TV. 1.Features The TDA6103Q has the three-way (R, G, B) color signal amplifier to replace the traditional three-way discrete components of the video amplifier. 2.Pin functions and data The TDA6103Q is in the 9-pin single row package, the pin functions and data is as shown in table 14-28. Table 14-28 The pin functions and data of TDA6103Q
