TDA7056 integrated block typical application circuit

Published:2011/5/5 21:00:00 Author:TaoXi | Keyword: integrated block, typical application | From:SeekIC

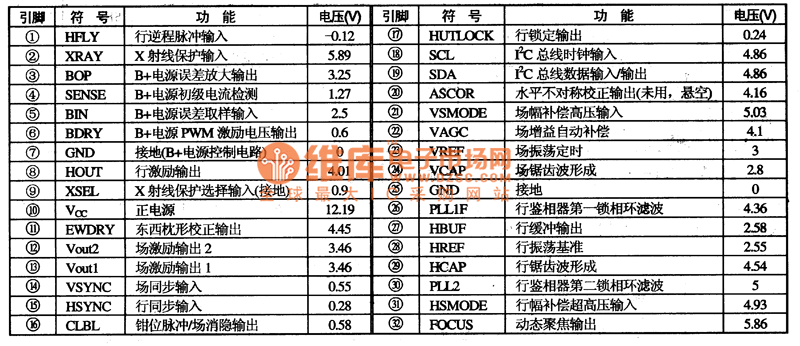

The TDA4856 is designed as one kind of line&field scanning front class front-end B+ power control circuit, and it can be used in a variety of computer color monitor applications. The pin functions and data is as shown in table 14--18 Table 14--18 The pin functions and data of the TDA4856
