TDA610Q(ICNBOl) pin functions and data circuit

Published:2011/5/11 2:06:00 Author:TaoXi | Keyword: pin functions, data | From:SeekIC

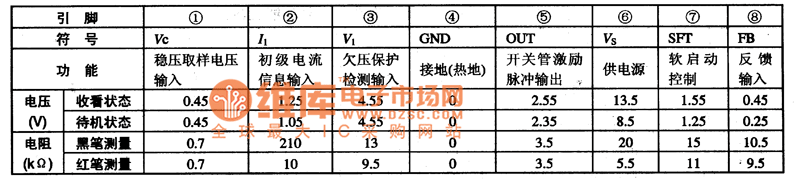

The TDA4605-3 is designed as one kind of switch power supply thick-film integrated circuit that can be used in Philips G8 movement (such as the 25SX8661/93T, 28SX8671/93P), the Goldstar MC-15A movement (CFT一2590), the Dimethoate CT6388M, the Peony 64C2A, T4C2, the Konka F2566E, nlOgE, A1488N, the Changhong NC6 movement (G2966A, G2967A).etc. The TDA4605-3 has the sampling voltage processing regulator circuit, the under-voltage detection and protection circuit, the excitation pulse output circuit, the soft-start control circuit.etc. This IC is in the 8-pin package, the pin functions and data is as shown in table 16. Table 16 The pin functions and data of the TDA4605-3
