TDA4565--the brightness delaying integrated circuit

Published:2011/6/5 3:15:00 Author:qqtang | Keyword: integrated circuit, brightness delaying | From:SeekIC

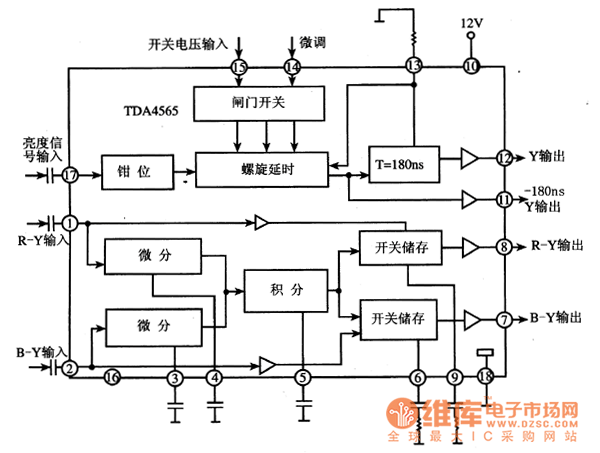

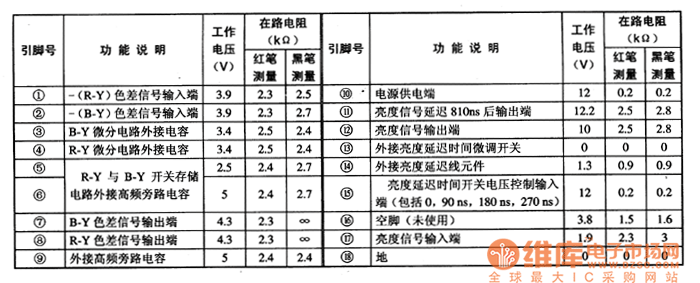

TDA4565 is he brightness delaying integrated circuit produced by Philips, which is widely used in local and imported large screen color TV.1. Function features TDA4565 contains two lines of differentiation and integration handle circuits of chromatism (R-Y) and (B-Y) signals, switch storage circuits, clamp circuits, time delay circuits, throttle valve circuits and so on. 2.pin functions and dataTDA4565 is in 18-pin dual in-line package, whose pin functions and data are listed in Table 1.Table 1 the pin functions and data of TDA4565
