TDA1302T--the integrated circuit of RF signal preset amplifiers

Published:2011/6/5 5:42:00 Author:qqtang | Keyword: integrated circuit, RF signal | From:SeekIC

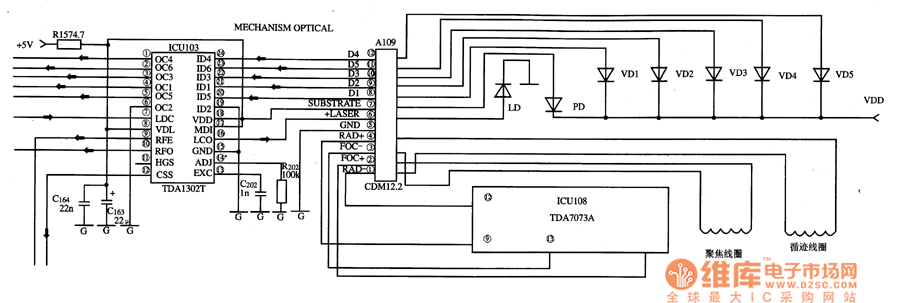

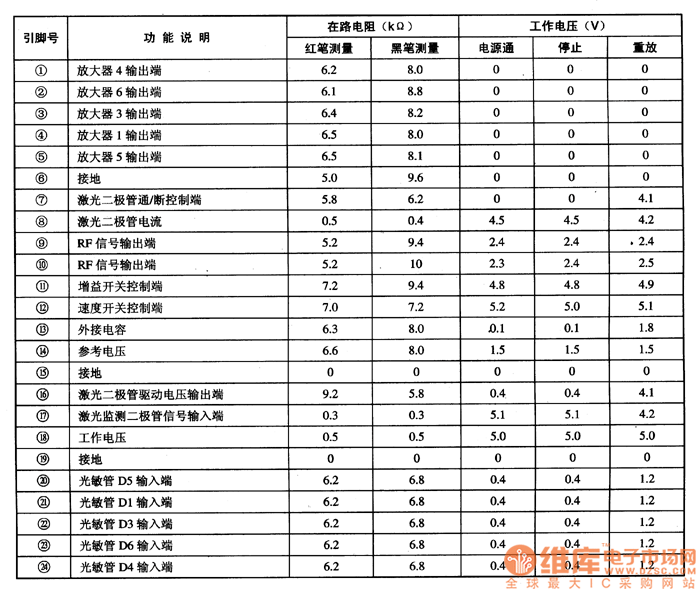

TDA1302T is an integrated circuit of RF signal preset amplifiers produced by Philips, which is widely used in all kinds of local and imported disc players.1.pin functions and dataTDA1302T is in 24-pin dual in-line package, whose pin functions and data are listed in Table 1.Table 1. pin functions and data of TDA1302T 2.typical applications circuitThe typical application circuit of RF amplifier, which consists of TDA1302T, is shown in Figure 1.Figure 1. The typical applications circuit of TDA1302T
