TDA1301T--the servo processing integrated circuit

Published:2011/6/5 5:32:00 Author:qqtang | Keyword: servo processing, integrated circuit | From:SeekIC

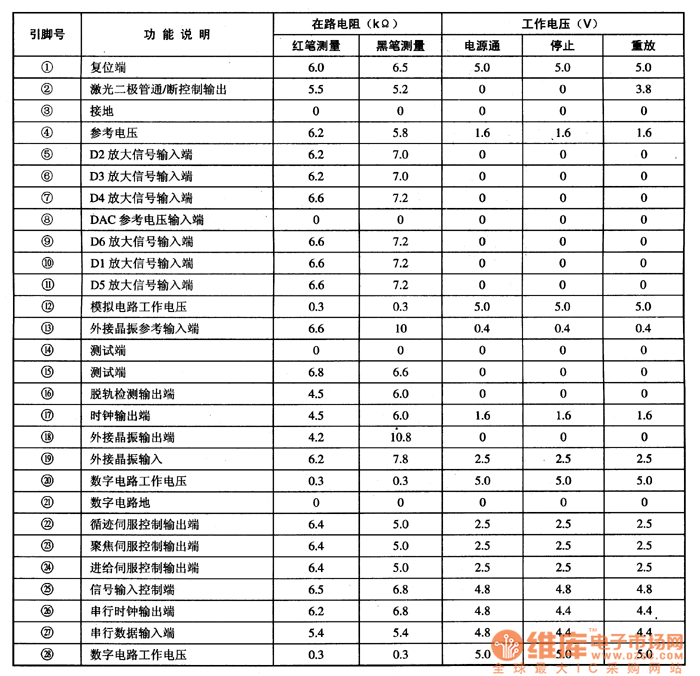

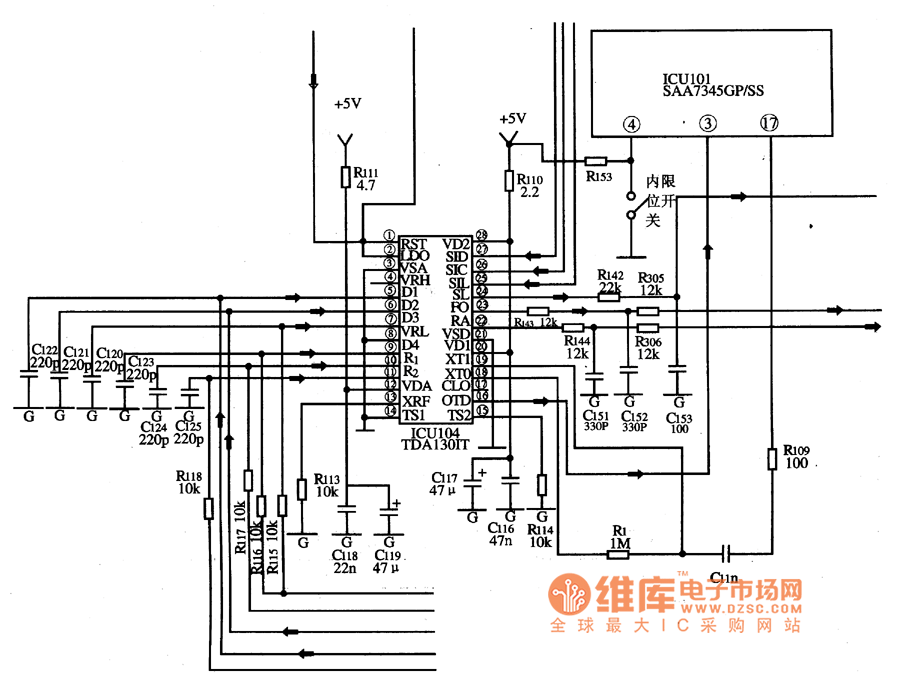

TDA1301T is the servo processing integrated circuit produced by Philips, which is widely used in all brands of disc players, such as Malata and Shinco, etc.1.function featuresTDA1301T includes tracking servo, focus servo, feed servo control circuit, laser diode cutting control circuit, serial clock and data signal processing circuit, off-route detection circuit, reset circuit and other additional function circuits.2.pin functions and dataTDA1301T is in 28-pin dual in-line package.
