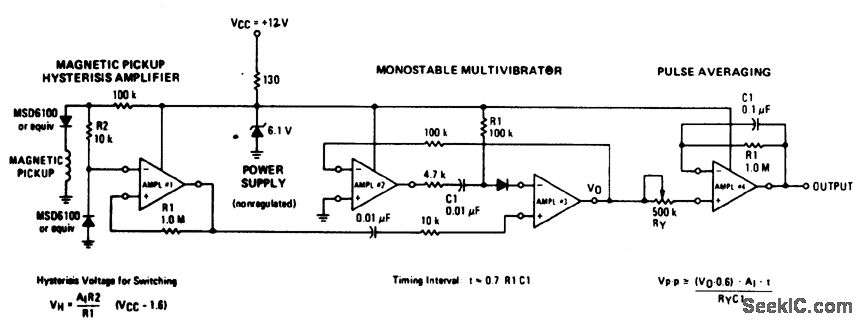

TACHOMETER_1

Published:2009/6/24 4:21:00 Author:Jessie | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Automotive_Circuit/TACHOMETER_1.html

Print this Page | Comments | Reading(3)
