TA8859CP image geometric distortion correction circuit

Published:2011/5/6 2:39:00 Author:TaoXi | Keyword: image, geometric distortion, correction | From:SeekIC

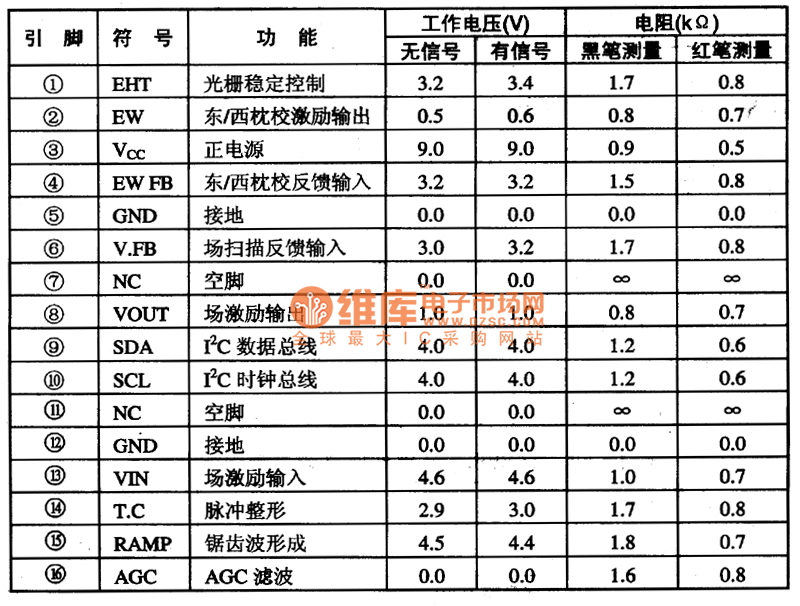

The TA8859CP is designed as one kind of image geometric distortion correction circuit that is produced by the TOSHIBA company, and it can be used in the large screen and rear projection TV's scanning part. 1.Features The TA8859CP has the vertical linear compensation and S correction circuit, the parabolic wave circuit, the field scanning sawtooth wave circuit, the trapezoidal distortion correction circuit, the line/field linear adjustment circuit, the line/field center adjustment circuit.etc. 2.Pin functions and data The TA8859CP can be used in the Konka BT5O01-type rear projection TV, the pin functions and data is as shown in table 1. Table 1 The pin functions and data of the TA8859CP
