TA8844N--the brightness/chroma and scanning integrated circuit

Published:2011/6/8 4:23:00 Author:qqtang | Keyword: brightness/chroma, integrated circuit | From:SeekIC

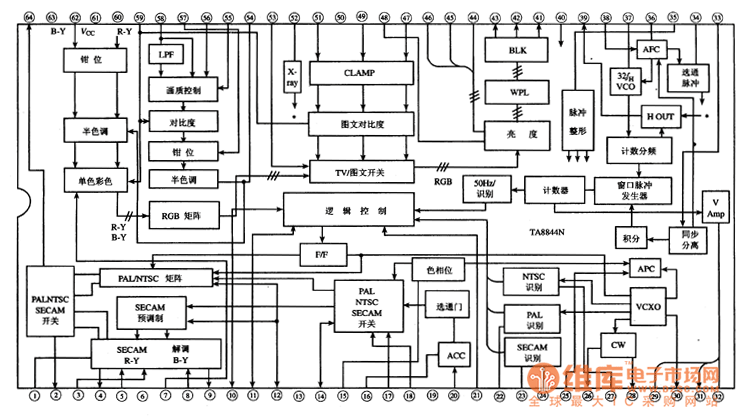

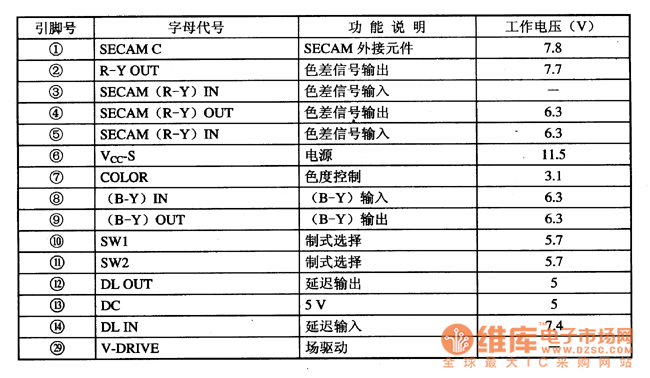

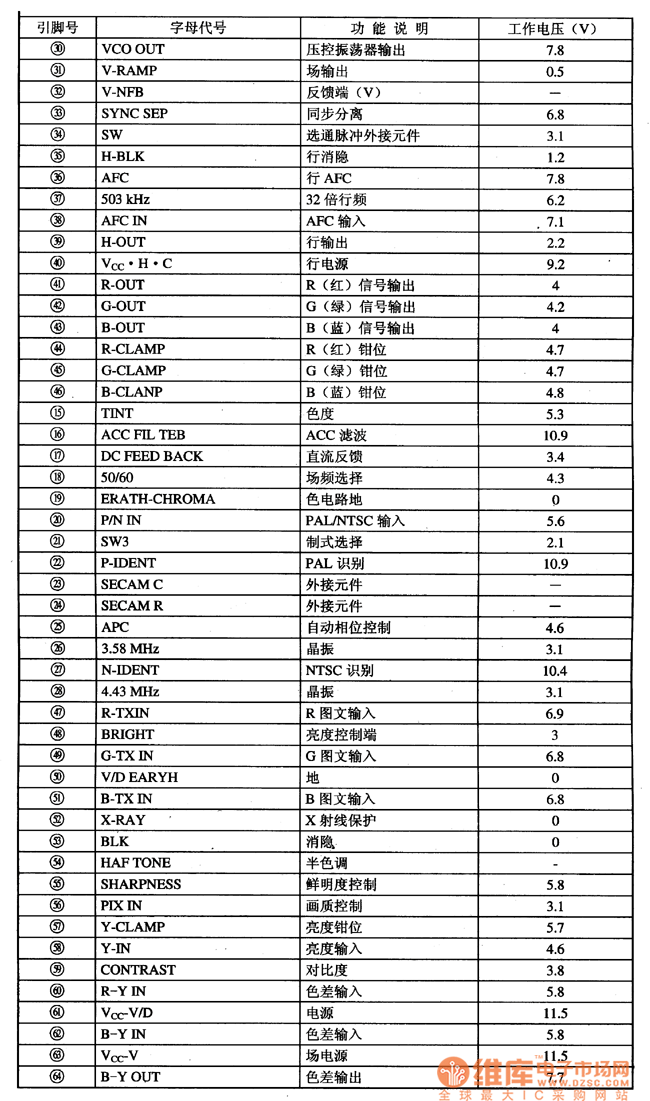

TA8844N is the brightness/chroma and scanning integrated circuit produced by Toshiba, which is widely used in large screen color TV sets.1.function featuresTA8844N is manufactured for large screen color TV sets, which contains the brightness signal process circuit, picture quality changing circuit, text signal process circuit, chroma signal process circuit, PAL/NTSC/SECAM switch and type recognizing circuit, travelling field scanning small signal process circuit and other additional circuits. Its internal circuit is shown in Figure1. 2.pin functions and data
