TA8765N-SECABM--the decoding integrated circuit

Published:2011/6/8 6:55:00 Author:qqtang | Keyword: decoding, integrated circuit | From:SeekIC

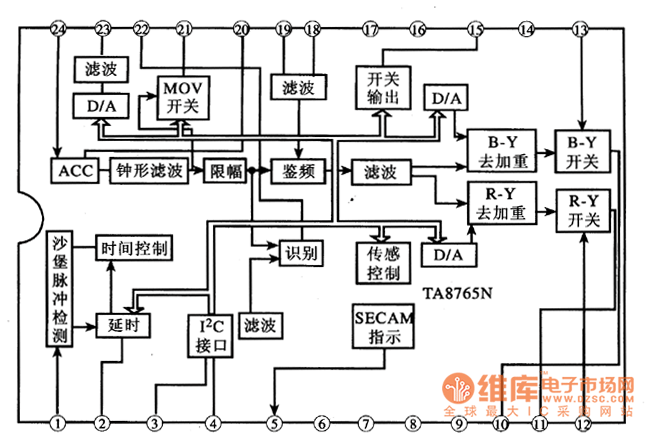

TA8765N —SECABM is the decoding integrated circuit produced by Toshiba, which is widely used in local and imported large screen multi-system color TV, such as Changhong NC-6 core.1.function featuresTA8765N —SECABM includes the sand castle signal process circuit, I2C general connector circuit, system recognition and output circuit, chroma signal frequency discrimination APC filter circuit, ACC filter circuit, switch output circuit, MOV switch circuit, D/A converting circuit and other additional function circuit,etc. Its internal circuit is in Figure 1.
