TA8759AN--the brightness/chroma/travelling field scanning integrated circuit

Published:2011/6/8 7:45:00 Author:qqtang | Keyword: travelling field, integrated circuit | From:SeekIC

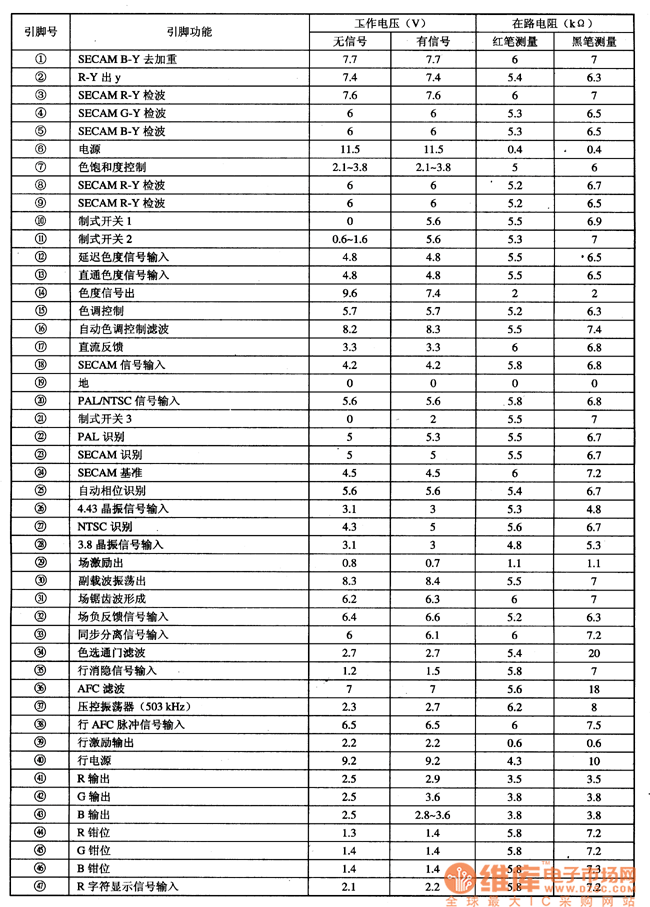

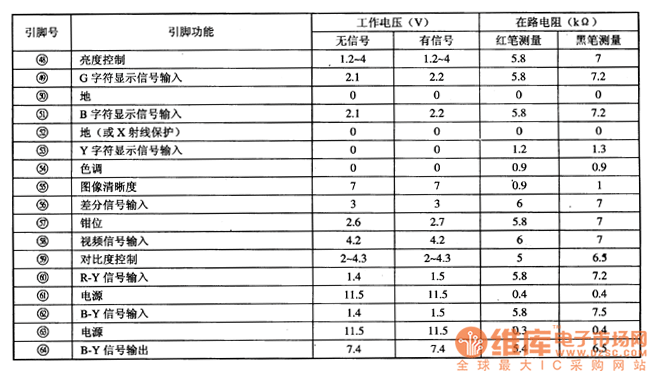

1.function featuresTA8759AN includes the video brightness and chroma signal process circuit, travelling field scanning small signal process circuit, 3 base color signal preset circuit, PAL/NTSC/SECAM system shifting control circuit, external text circuit signal connector circuit, X ray protection circuit, 3 system chroma signal preset circuit and other corresponding additional function circuit,etc. 2.pin function and dataTA8759AN is in 64-pin dual in-line package, whose pin functions and data are listed in table 1.
