TA8427 field scanning output integrated circuit

Published:2011/5/8 7:50:00 Author:TaoXi | Keyword: field scanning, output integrated circuit | From:SeekIC

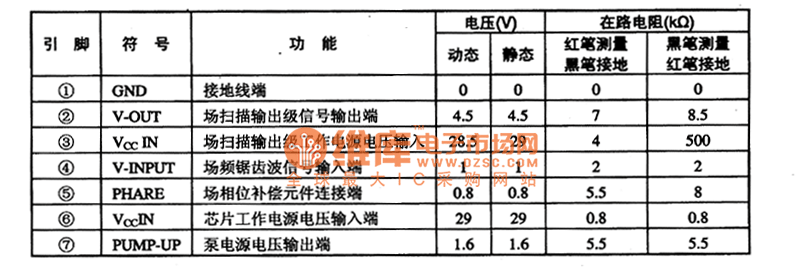

The TA8427 field scanning output integrated circuit is produced by the TOSHIBA company, it can be used in variety kinds of large screen color TVs. 1.Features The TA8427 has the field scanning output circuit, the pump supply voltage circuit, the phase compensation circuit and other accessibility circuits. 2.Pin functions and data The TA8427 is in the 7 pin single in-line package, the pin functions and data is as shown in table 1. Table 1 The pinfunctionsanddata of the TA8427
