TA8409S motor driving integrated circuit

Published:2011/5/8 8:24:00 Author:TaoXi | Keyword: motor driving | From:SeekIC

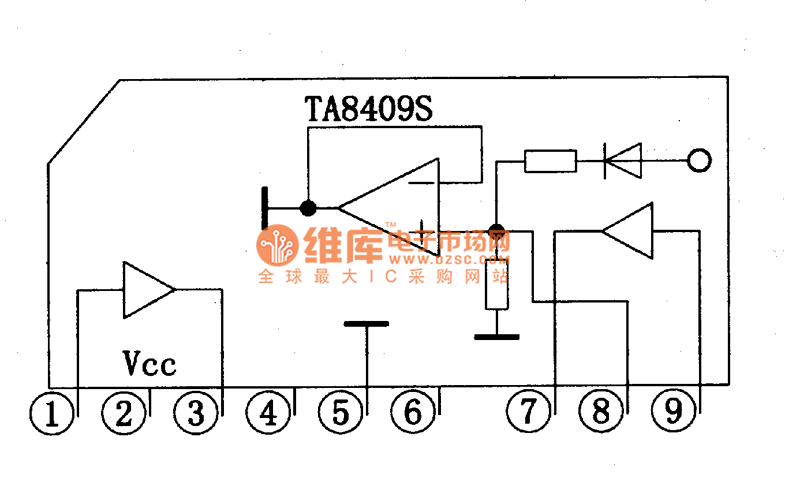

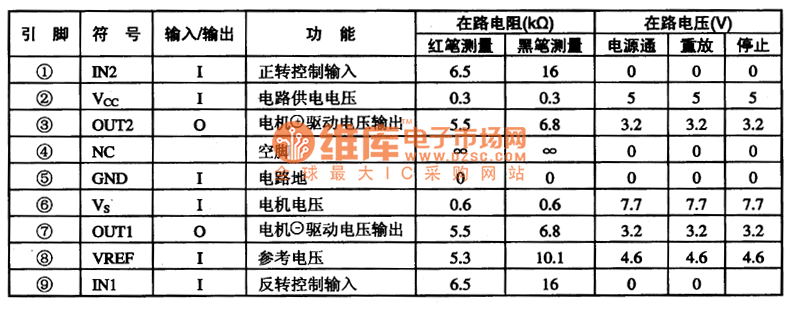

The TA8409S motor driving integrated circuit is produced by the TOSHIBA company that can be used as the load motor or disc motor driver in the laser players such as CD、VCD、SVCD. 1.In-circuit block diagram The TA8409S is designed as one kind of bi-directional control motor driving IC, the in-circuit block diagram is as shown in figure 1. Figure 1 The in-circuit block diagram of TA8409S 2.Pin functions and data The TA8409S is in the 9-pin single in-line package, the pin functions and data is as shown in table 1, the data is from the Changhong VD-6000 type VCD player. Table 1 The pin functions and data of the TA8409S
