TA8402F--the motor drive integrated circuit

Published:2011/6/8 20:22:00 Author:qqtang | Keyword: motor drive, integrated circuit | From:SeekIC

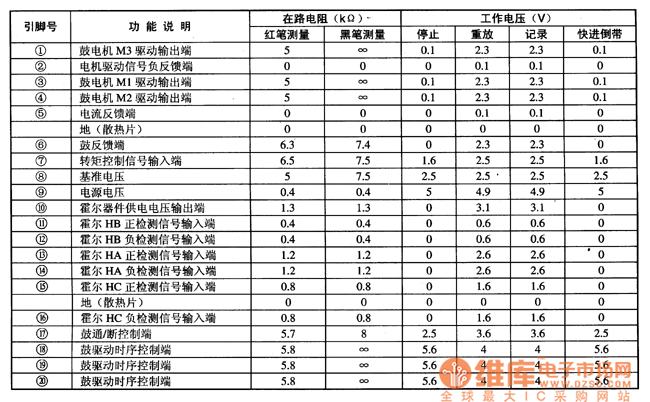

TA8402F is the motor drive integrated circuit produced by Toshiba, which is widely used in disc players and cameras, such as Panasonic NV-M8000 camera and the like.1.function featuresTA8402F contains the difference amplifier circuit, torque control circuit, position signal process circuit, motor drive circuit and stable voltage circuit, etc. The internal circuit and its typical application circuit are shown in figure 1.Figure 1. The internal circuit and typical application circuit of TA8402F 2.pin functions and dataThe pin functions and data are listed in table 1.
