TA7792--the FM/AM reception single door integrated circuit

Published:2011/6/9 23:40:00 Author:qqtang | Keyword: FM/AM reception, single door, integrated circuit | From:SeekIC

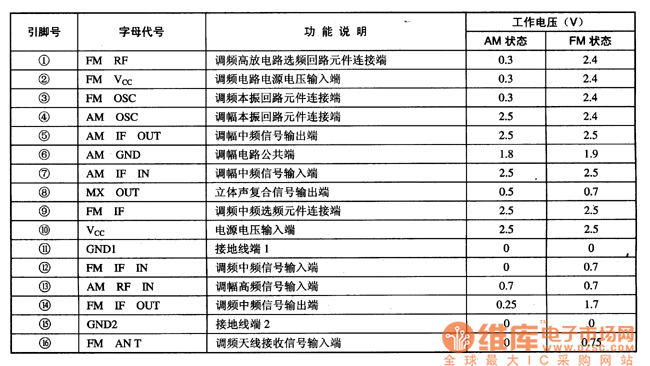

TA7792 is the FM/AM reception single door integrated circuit produced by TA7792, which is widely use in low-voltage portable stereo and communication equipment.1.function featuresTA7792 contains FM AGC, self-oscillating, mixing, IF, frequency discrimination circuit; AM AGC, self-oscillating, mixing, IF, detection circuit and other affiliated circuits.2.pin function and dataTA7792 in is 16-pin dual line package, whose pin functions and data are listed in table 1.Table 1. The pin functions and data
